EN 1492-1

	Straight pull	Basket hitch	Choke hitch	Basket hitch

				0°−45°	45°−60°
Width	Working load limit (WLL) in tons
50 mm	1,0	2,0	0,8	1,4	1,0
60 mm	2,0	4,0	1,6	2,8	2,0
90 mm	3,0	6,0	2,4	4,2	3,0
120 mm	4,0	8,0	3,2	5,6	4,0
150 mm	5,0	10,0	4,0	7,0	5,0
180 mm	6,0	12,0	4,8	8,4	6,0
240 mm	8,0	16,0	6,4	11,2	8,0
300 mm	10,0	20,0	8,0	14,0	10,0
Factor (K_L)	1	2	0,8	1,4	1

Lagersted	Availability

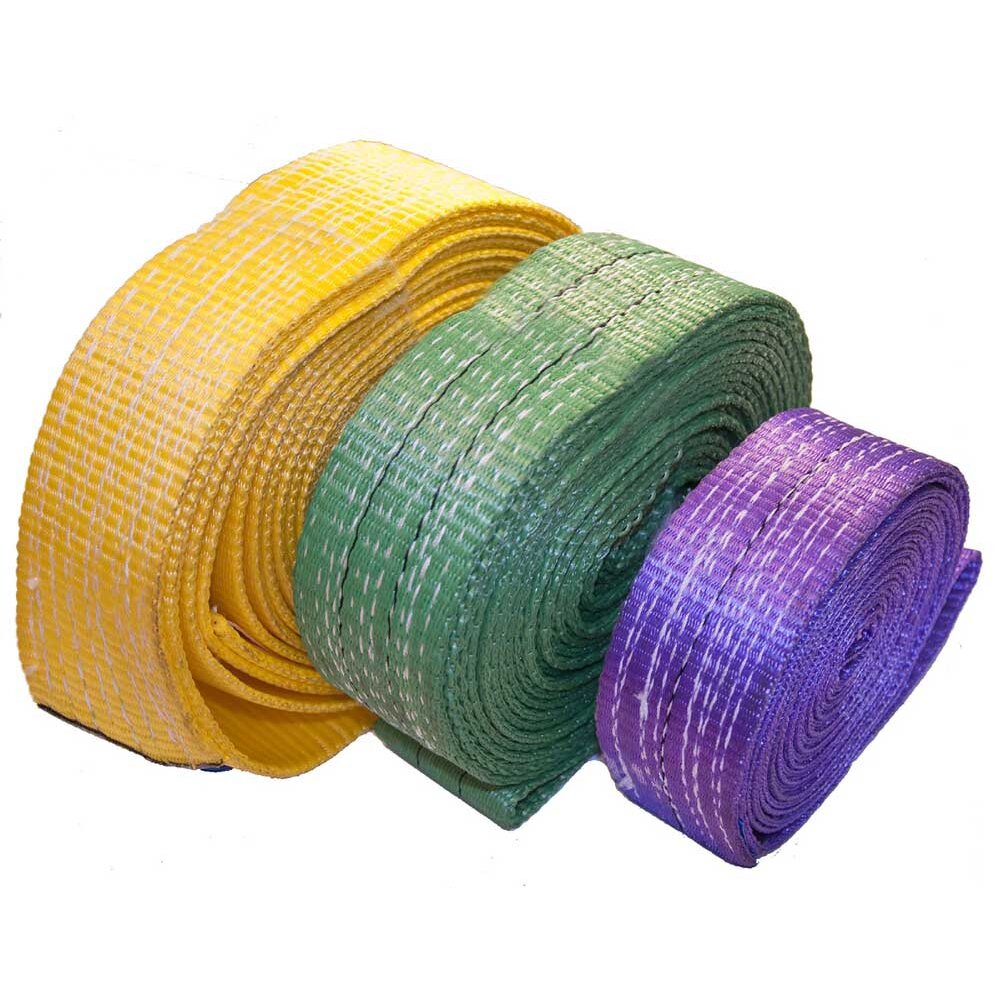

Båndsling POWERTEX PWS

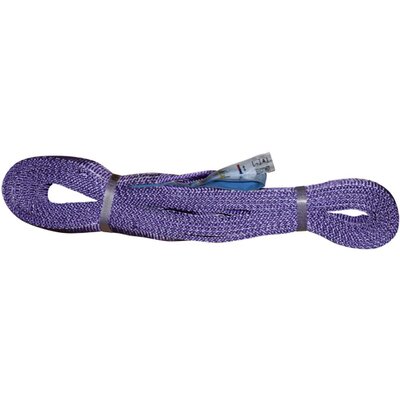

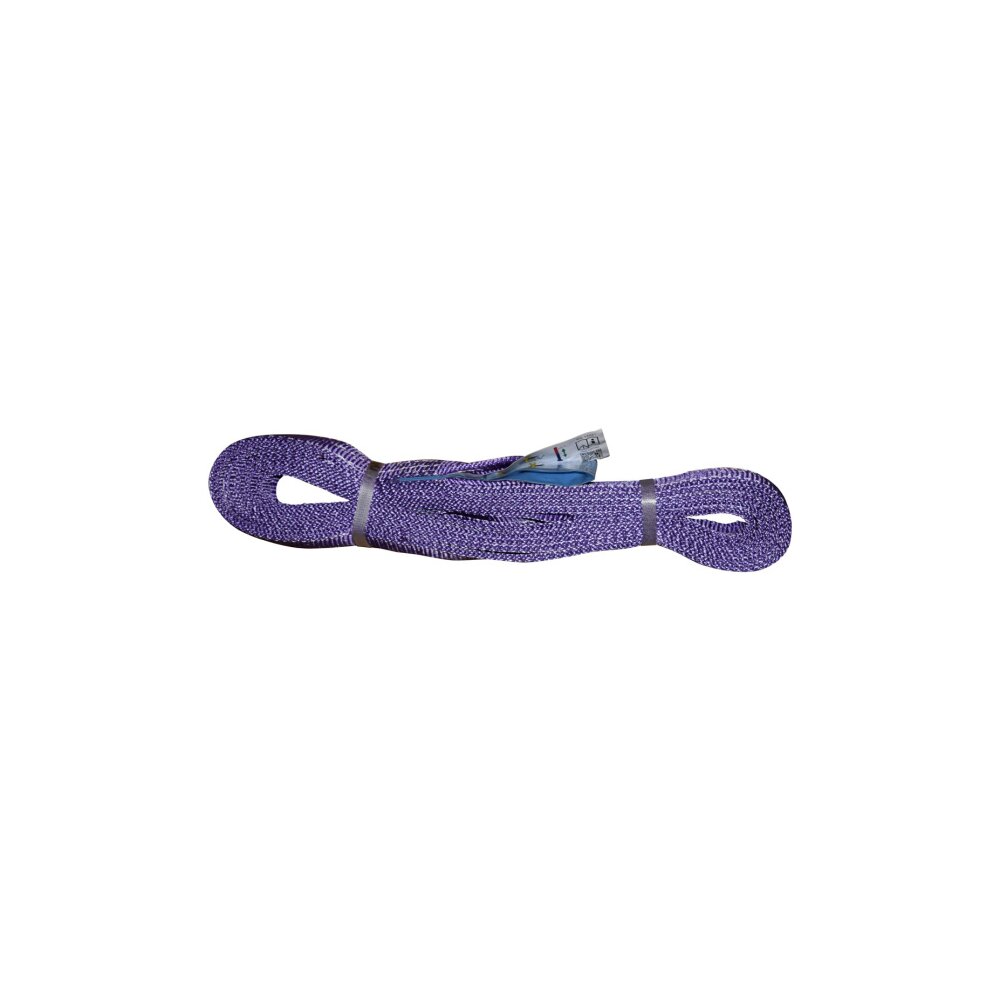

Endless webbing sling POWERTEX PWS 1t, packed

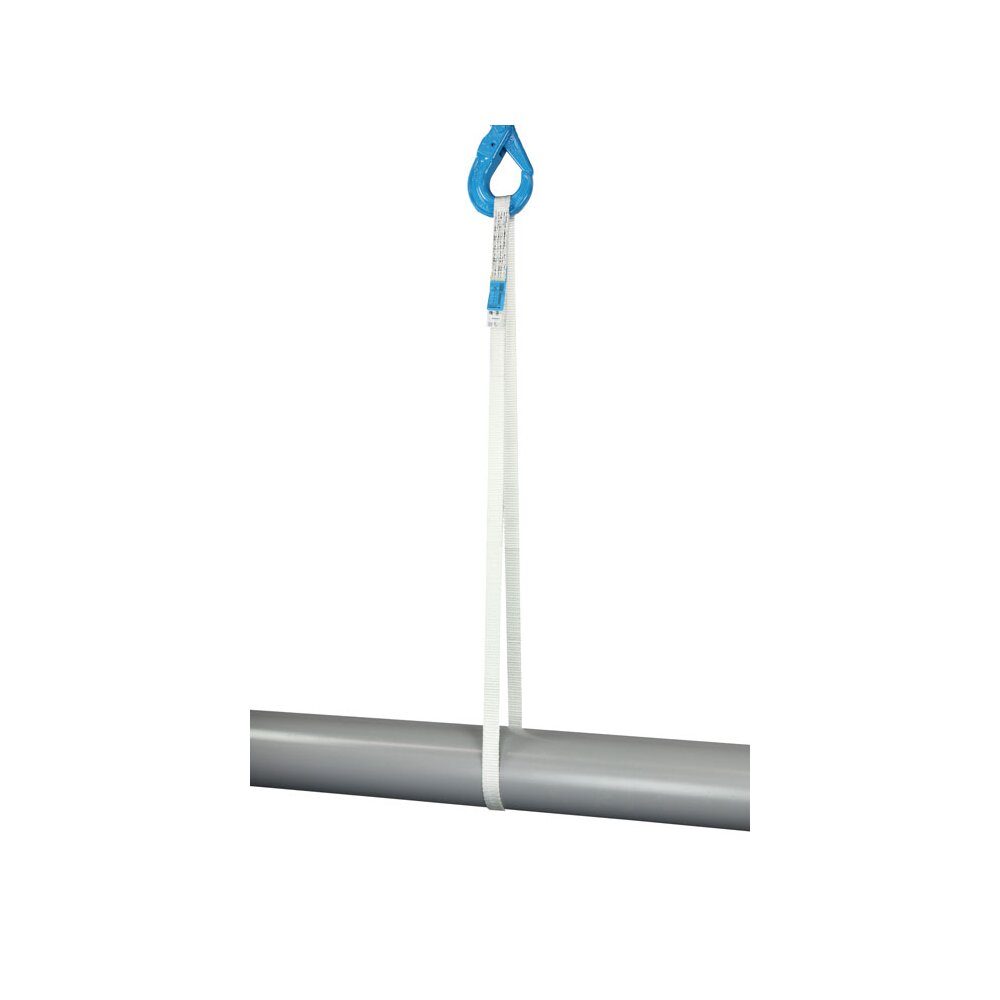

Endless webbing sling POWERTEX PWS 0.5t, white

Endless Webbing Sling POWERTEX PWE

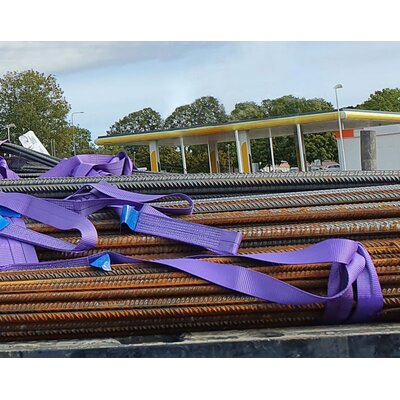

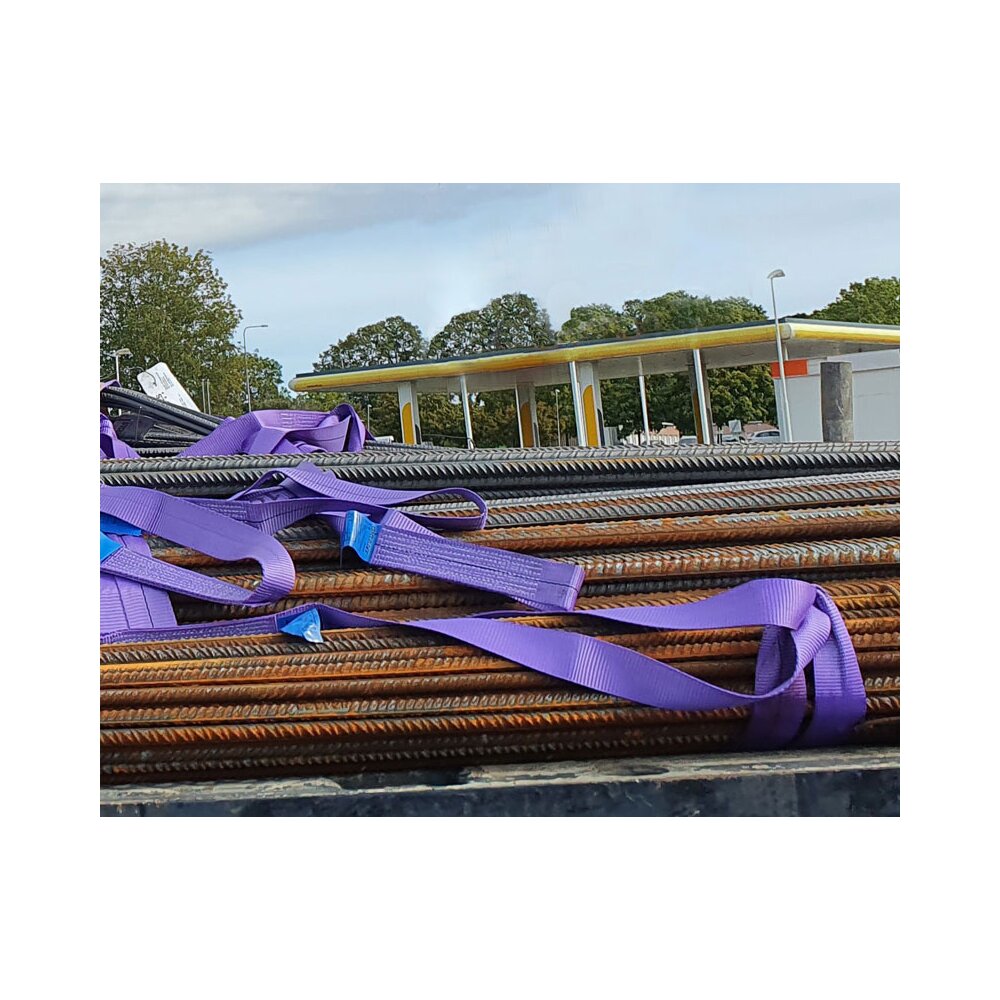

Pre-slinging of reinforcement bars/nets

Få PDF

Forlengelse ved arbeidslast: 2-3%.
Lengde toleranse: Nominell lengde (EWL) ±3%.

Vis mer

Vis tabell

WLL:

EWL:

Antall:

Logg inn i webshop

Artikkelnummer:

Forlengelse ved arbeidslast: 2-3%.
Lengde toleranse: Nominell lengde (EWL) ±3%.

Materiale: Polyester. Resistent mot de fleste syrer men ikke sterke alkalier.
Merking: I henhold til standard, CE-merket, Stroppene er påført blå etiketter med leverandørens navn, maks last (WLL) lengde, produksjonsdato og CE-merking. I tillegg er det en etikett med bruksanvisning.
Arbeidstemperatur: -40° - +100°C.
Standard: EN 1492-1

Filter og kategorier

Vis resultat

EN 1492-1

	Straight pull	Basket hitch	Choke hitch	Basket hitch

				0°−45°	45°−60°
Width	Working load limit (WLL) in tons
50 mm	1,0	2,0	0,8	1,4	1,0
60 mm	2,0	4,0	1,6	2,8	2,0
90 mm	3,0	6,0	2,4	4,2	3,0
120 mm	4,0	8,0	3,2	5,6	4,0
150 mm	5,0	10,0	4,0	7,0	5,0
180 mm	6,0	12,0	4,8	8,4	6,0
240 mm	8,0	16,0	6,4	11,2	8,0
300 mm	10,0	20,0	8,0	14,0	10,0
Factor (K_L)	1	2	0,8	1,4	1
