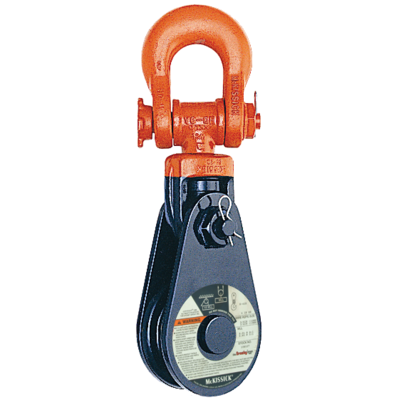

Snatch Block McKissick 431 with Shackle - Super Champion

The McKissick snatch block 431 Super Champion from Crosby is a snatch block fitted with a shackle. Available from 20 up to 30 T. Can be delivered with bronze bushing (BB) and with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening featu

Show more

Product number:

The McKissick snatch block 431 Super Champion from Crosby is a snatch block fitted with a shackle. Available from 20 up to 30 T. Can be delivered with bronze bushing (BB) and with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Marking: CE-marked
  • Safety factor: 4:1
