Gunnebo Industries

We stock high quality painted Grab Hook OGN w/ latch, a painted grab hook in alloy steel grade 10.






  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

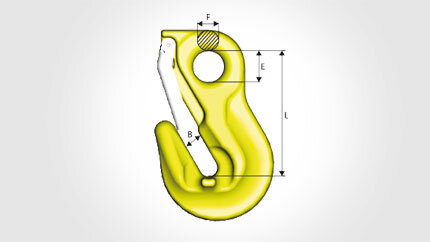

Part Code Code WLL
ton
L
mm
B
mm
E
mm
F
mm
Weight
kg
11.21Z101316 OGN-22-10 20 187 26 46 32 8.8
11.21Z101317 OGN-26-10 27 228 32 55 38 14.7
