Gunnebo Industries

For use with master links.

  • Material: Quenched and tempered alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

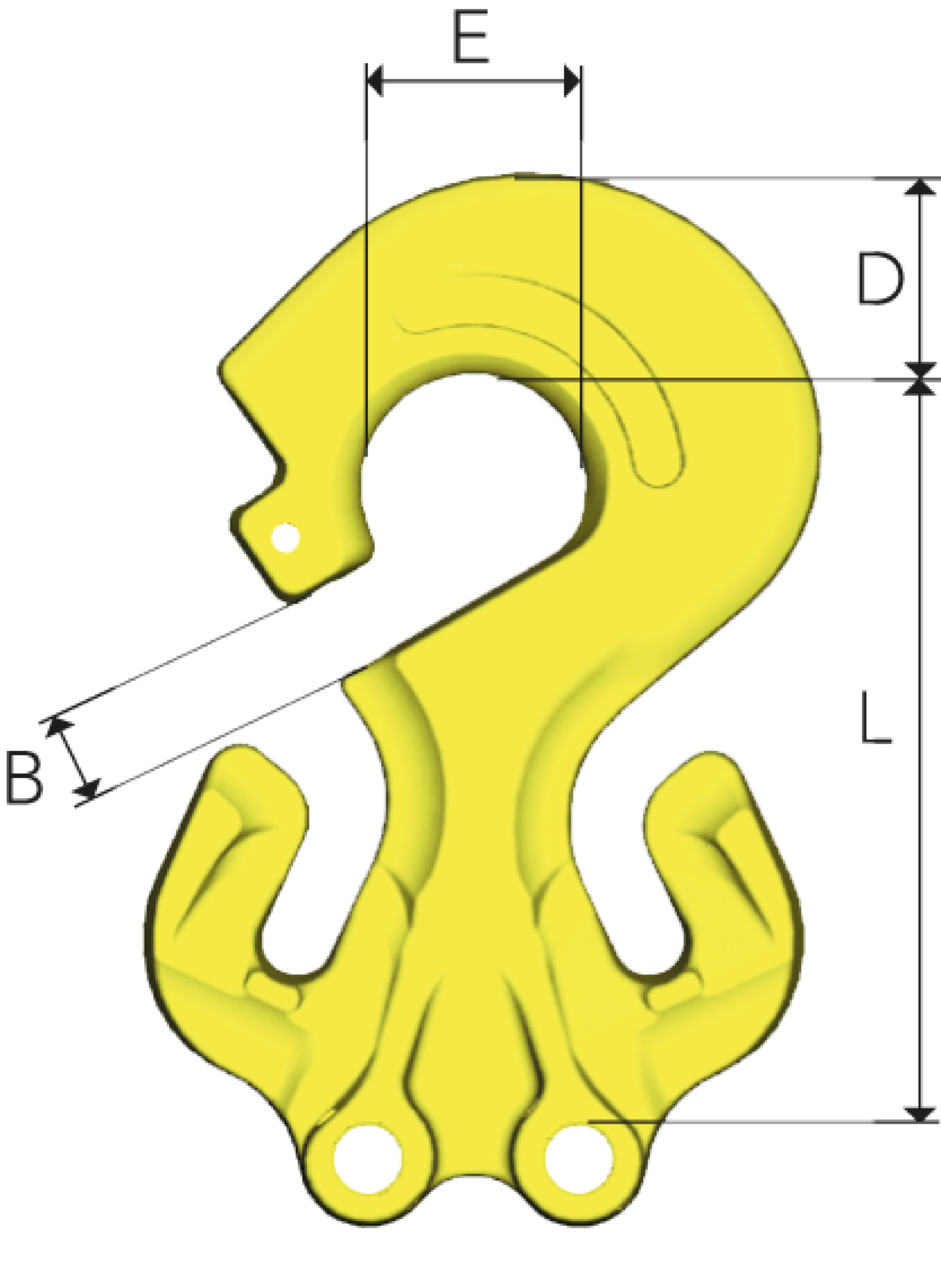

Part Code Code WLL
ton
L
mm
B
mm
E
mm
H
mm
Weight
kg
11.06B14720 CGD-6-10 2.1 79 11 24 20 0.6
11.06B14721 CGD-8-10 3.5 107 12 32 29 1.1
11.06B14722 CGD-10-10 5.6 134 15 40 37 2.2
11.06B14723 CGD-13-10 9.5 173 19 48 48 5.4
11.06B14724 CGD-16-10 14 215 22 64 57 9.1
