Wire rope Dyform Bristar 8

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Compacted strands
  • Not to be used with swivel

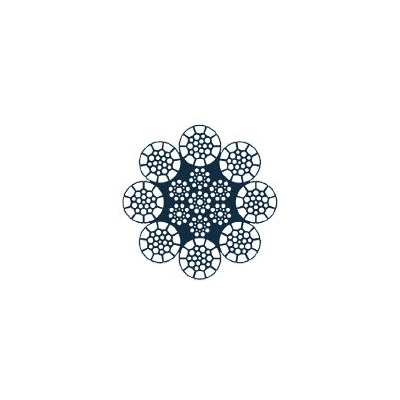

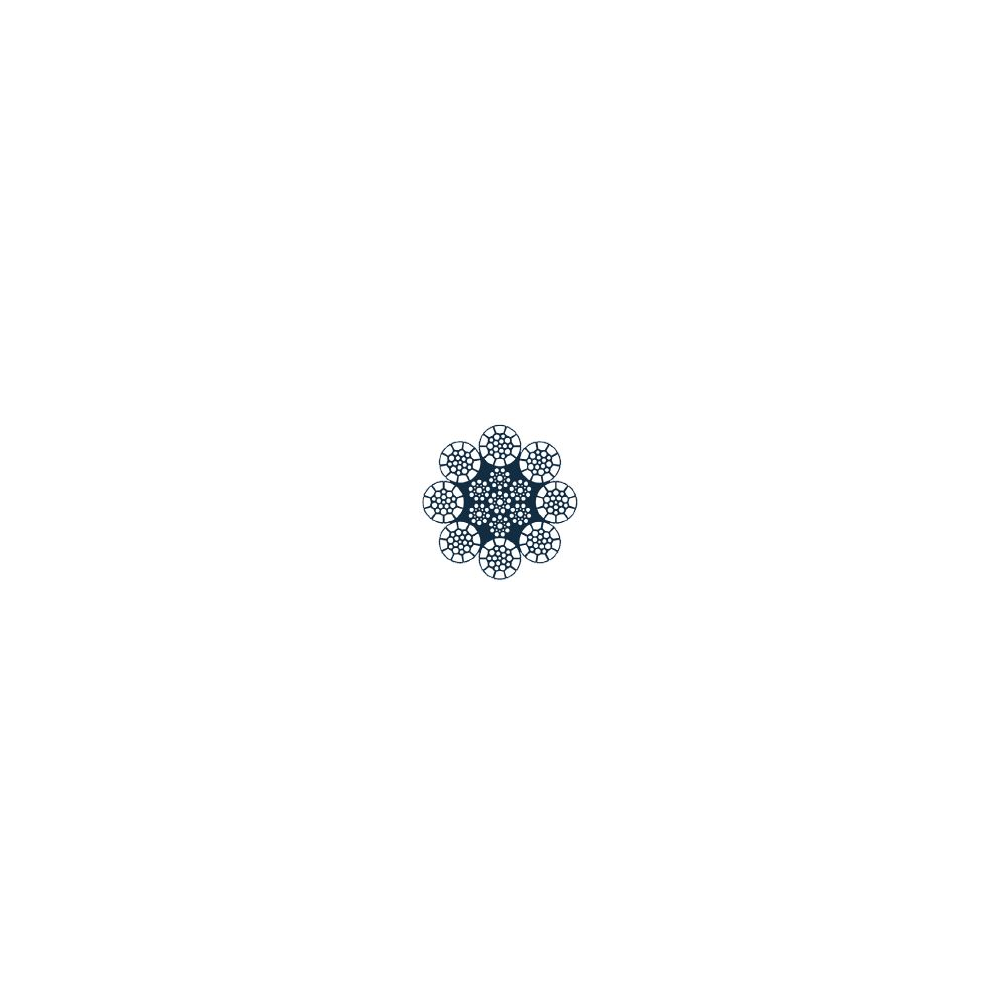

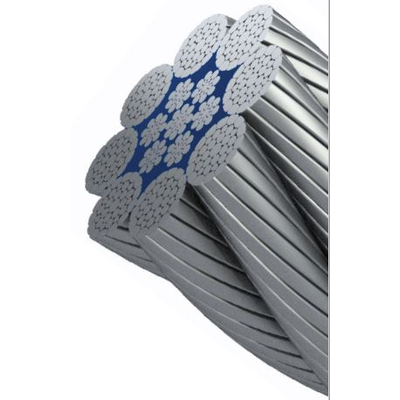

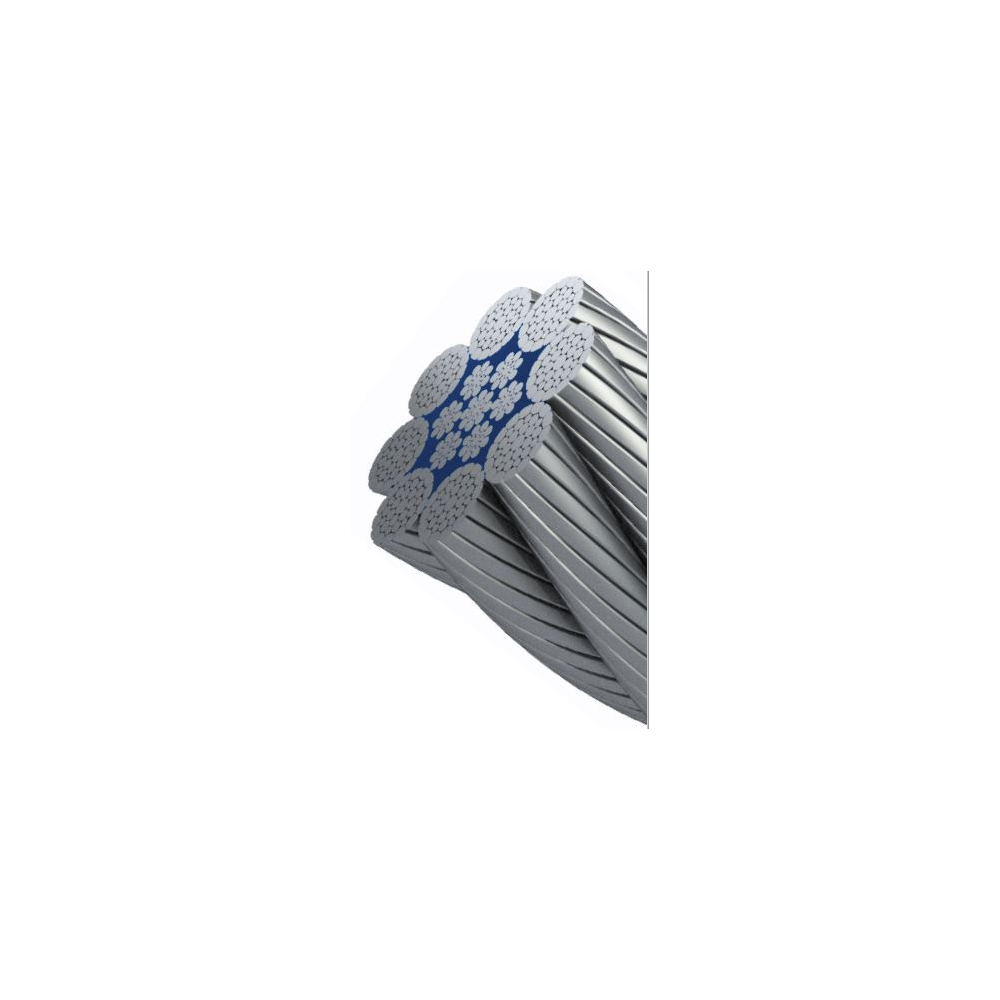

Dyform Bristar 8 is a high performance compacted single layer constructed rope which incorporates an engineered extruded plastic profile between the 8 outer strands and the rope core for cranes and industrial applications including mobile, crawler and tower cranes.

Standard: EN 12385-4
ISO 4309 Rope Category No: 10-17mm RCN.04, 18-34mm RCN.09, 36-50mm RCN.11

  • Features: High breaking force.
  • Rope construction: 8x26
  • Material: High Carbon Steel
  • Marking: According to standard
  • Finish: Galvanised or Ungalvanised
  • Standard: EN 12385-4
  • Fill factor: 0.68
  • RCN: 04
