Steel wire rope Diepa X53 (PZ371)

  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Attribute icon

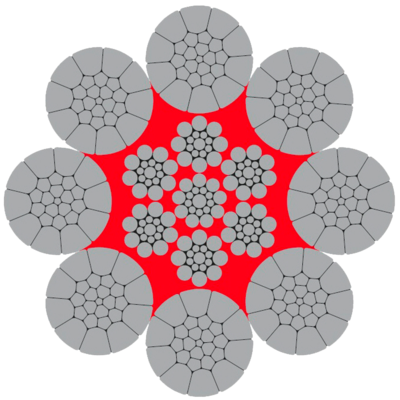

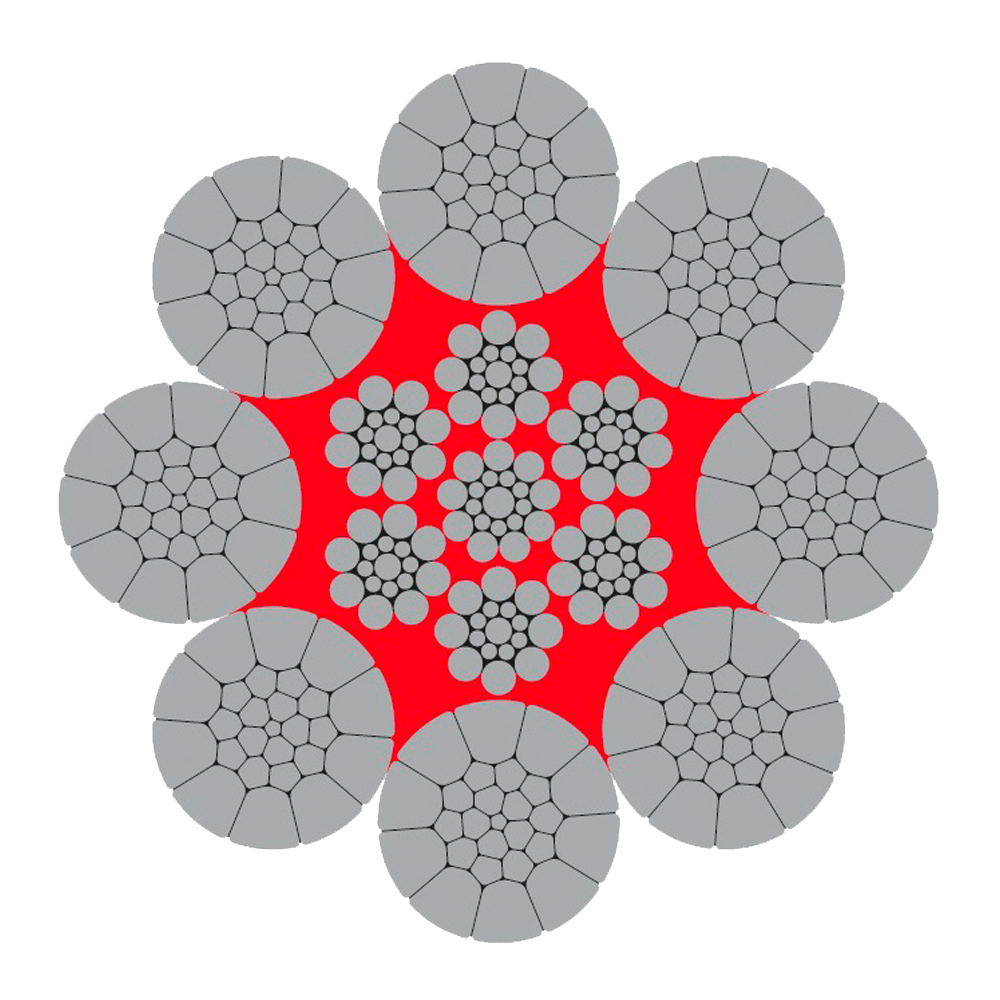

Diepa X53 is a non-rotation resistant wire rope with compacted outer strands, plastic insert and high breaking force.

Applications: Lifting wire for mobile cranes, deck cranes and container cranes where multiple parts is being used in lower lifting operations, and where right -and left hand lays are being used in at the same time. Winch and digging machines.

Lay: Ordinary Lay with platic insert.
Total number of wires: 4-14mm 201, 15-43mm 329, 44-65mm 409, 66-100mm 580.
ISO 4309 Rope Category No: 4-14mm RCN.04, 15-44mm RCN.09, 45-100mm RCN.13

Optional: X50 - Ordinary Lay, X55 - Lang Lay, X58 Lang Lay with plastic insert.
From  ø76mm tensile strenght 2160 N/mm2 on request

  • Marking: According to standard
  • Finish: Galvanized or bright.
  • Standard: EN 12385-4
  • Warning: Not to be used with a swivel.
  • Fill factor: 0.6750
  • RCN: 04
