Steel wire rope Diepa H40 (SKZ8), non-rotation resistant.

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Compacted strands
  • Not to be used with swivel

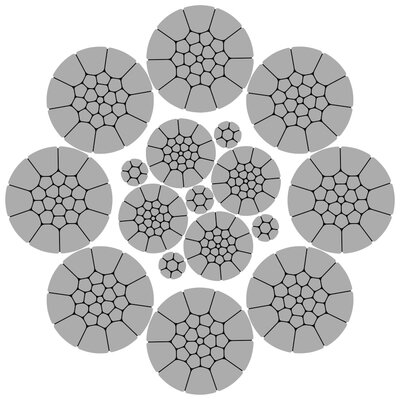

General: Diepa H40 is a non-rotation resistant wire rope with compacted inner and outer strands. The rope has a very high breaking force.
Applications: Jib adjusting rope. Jib retaining rope.

Lay: Ordinary lay

Total number of wires: 4-6mm 95, 7-15mm 262, 16-24mm 319, 25-44mm 347, 45-64mm 427, 65-76mm 487
ISO 4309 Rope Category No: 4-6mm RCN.02, 7-15mm RCN.04, 16-44mm RCN.09, 45-76mm RCN.13


  • Marking: According to standard
  • Finish: Galvanized or bright.
  • Standard: EN 12385-4
  • Warning: Not to be used with a swivel.
  • Fill factor: 0.7403
  • RCN: 02
