Gunnebo Industries

Electrically insulated, lubricated, sealed roller bearing swivel. Fully rotational even at maximum load. Tested to resist 1000 V. Suitable for protection of overhead cranes during welding operations on suspended loads.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, Code and grade.
  • Standard: EN 1677-1
  • Warning: Not to be heat treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

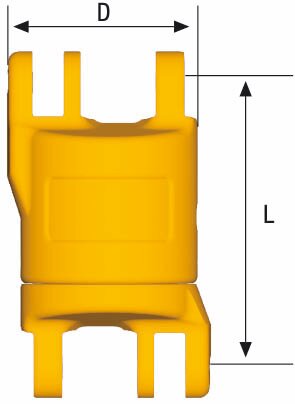

Part Code Code WLL
ton
For chain size L
mm
D
mm
Weight
kg
CAD
11.45Z100316 SKLI-7/8-8 2 7, 8 75 48 0.7
11.45Z100414 SKLI-10-8 3.2 10 97 59 1.3
11.45Z100415 SKLI-13-8 5.4 13 120 75 2.8
11.45Z100416 SKLI-16-8 8 16 137 90 4.7
11.45Z100417 SKLI-18/20-8 12.8 19 159 104 7.11
På forespørsel SKLU-22-8* 15.5 22 160 109 9.5
På forespørsel SKLU-26-8* 21.6 26 207 135 17.8
