• Not for lifting
General: Shackle for different applications.
  • Finish: Galvanized.
SJKL_50
Select a row from the table below, then click the add to quote button

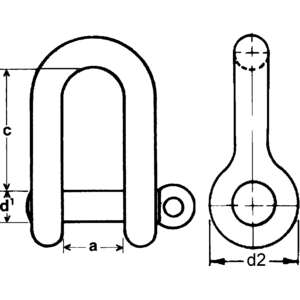

Part Code D1
mm
A
mm
C
mm
D2
mm
Weight
kg
CAD
11.5612043000 4,8 9,5 19,1 11,0 0.02
11.5612043100 6,4 12,7 25,4 14,0 0.04
11.5612043200 8,0 15,9 28,6 18,0 0.07
11.5612043300 9,5 19,1 34,9 20,0 0.11
11.5612043400 11,1 22,2 44,5 22,0 0.17
11.5612043500 12,7 25,4 44,5 26,0 0.26
11.5612043600 15,9 28,6 51,0 30,0 0.39
11.5612043700 19,1 31,6 70,0 34,0 0.7
11.5612043800 22,2 38,10 86,0 42,0 1.14
11.5612043900 25,4 44,5 98,0 48,0 1.62
11.5612044000 28,6 51,0 114 51,0 2.45

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
