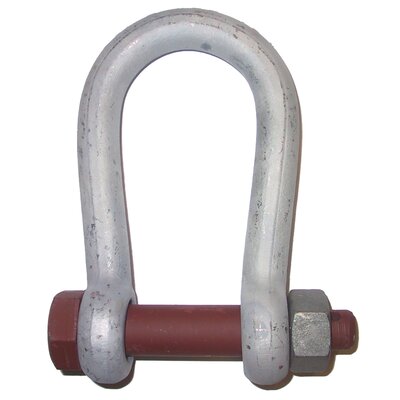

We deliver high quality mooring shackle in high tensile steel



  • Material: High tensile steel, quenched and tempered.
  • Finish: All parts hot dip galvanized.
Select a row from the table below, then click the add to quote button

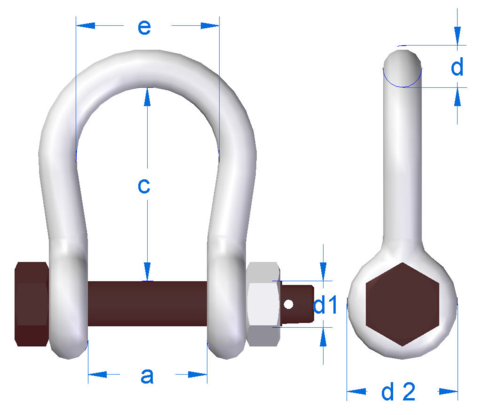

Part Code Dim d mdl-ton A
mm
C
mm
D2
mm
D1
mm
99.NO4611859540 1 3/4"-45 50 126 248 105 50
99.NO4611859500 3/4 "-19 8 44 100 47 22
99.NO4611859510 7/8"-22 12 52 125 50 25
99.NO4611859520 1 1/8"-28 18 62 150 58 28
99.NO4611859530 1 1/4"-32 26 82 170 72 32
