We can deliver a high quality thimble solid K5 GN. Ductile iron GGG50 and painted and galvanized.

  • Material: Ductile iron GGG50.
  • Finish: Painted/galvanized.
Select a row from the table below, then click the add to quote button

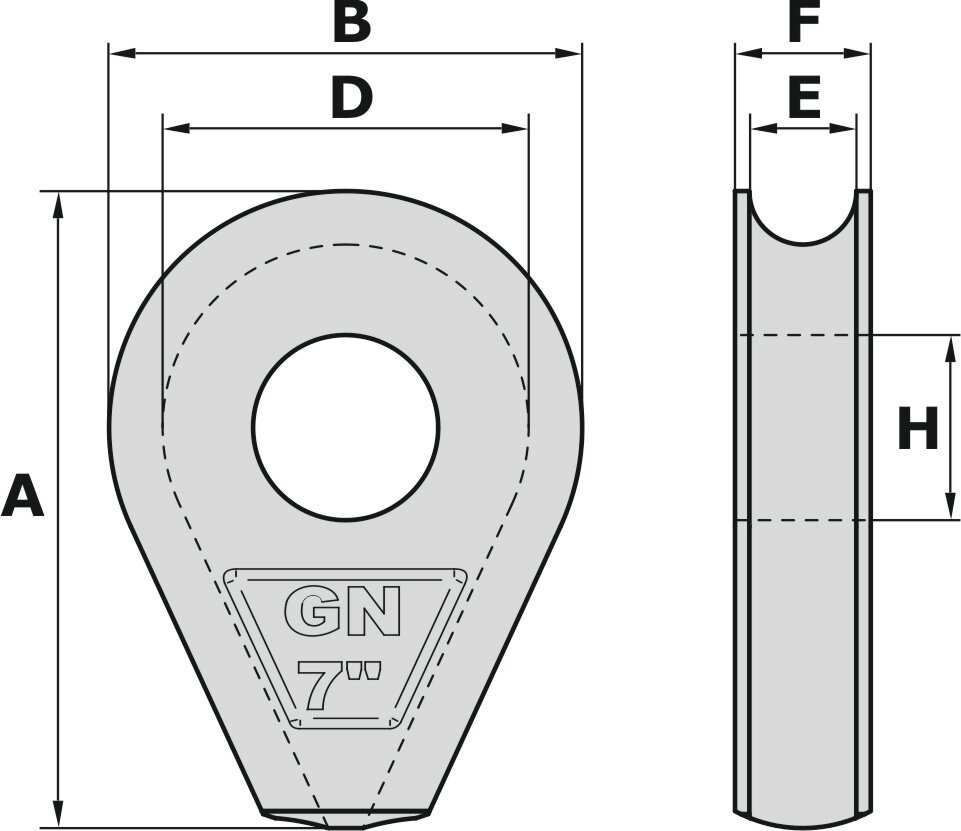

Part Code Size inch Diameter
mm
A
mm
B
mm
D
mm
E
mm
F
mm
H
mm
Weight
kg
CAD
07.25K502 2" 8 66 40 31 9 15 14 0.16
07.25K5025 2 1/2" 10 82 50 38 11 18 18 0.3
07.25K503 3" 12 98 60 45 13 20 21 0.5
07.25K5035 3 1/2" 14 114 70 53 16 24 25 0.7
07.25K504 4" 16/18 110 75 58 19 26 30/38/40 0.7
07.25K505 5" 20/22 130 92 65 23 30 30/40/45 1.2
07.25K506 6" 23/25 150 110 82 26 33 30/40/45/55 2
07.25K507 7" 28/30 180 127 96 32 40 30/40/52/60 3
07.25K508 8" 32/34 200 140 100 35 43 30/42/55/70 4
07.25K509 9" 36/38 225 160 122 39 47 50/70/90/100 5
07.25K510 10" 40/42 250 170 127 43 57 50/70/90/100 8
07.25K512 12" 44/48 305 210 160 54 69 60/80/105 15
Tolerance: ± 5%

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
