Eye terminals for pressing or swaging onto stainless steel wire rope. They are mainly used as an attachment to rigging screws or forks.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.
terminal_eye

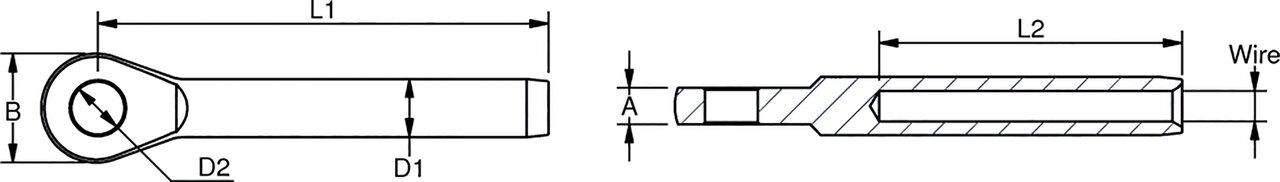

Stainless eye terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code MBL
t
Packing Qty. Wire Ø
inch
Wire Ø
mm
A
mm
B
mm
D1
mm
D3
mm
L1
mm
L2
mm
Weight
kg/100pc
CAD
05.71103 1.3 100 1/8” 3 4 14 6,35 6,5 60 38 1.3
05.71104 1.7 100 5/32” 4 5 17 7,5 8,5 67 45 2.3
05.71105 2.4 25 3/16” 5 6 21 9,0 10,5 79 51 3.9
05.71106 5.5 10 - 6 8 25 12,58 13,0 94 64 8.7
05.71107 6.8 10 9/32” 7 9 27 14,2 13,0 104 70 11.5
05.71108 8.7 10 5/16” 8 10 30 16,0 14,5 124 83 17
* Note: Terminal OD = 21,4

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
