Crosby

Design: Swivel with jaws equipped with tapered roller thrust bearing.

Features:

  • Suitable for frequent rotation under load.
  • All swivels individually Proof Tested to 2 times the Working Load Limit.
  • Pressure lube fitting provided
  • All jaws complete with bolts, nuts and cotter pins.
  • Other types and capacities up to 1250 t available on demand.
  • Marking: CE-marked
  • Note: Always check before use if your steel wire rope is suitable for use with a swivel.
  • Warning: Not to be used on demolition- (wrecking-) balls!
  • Safety factor: 5:1
S2
S2
Select a row from the table below, then click the add to quote button

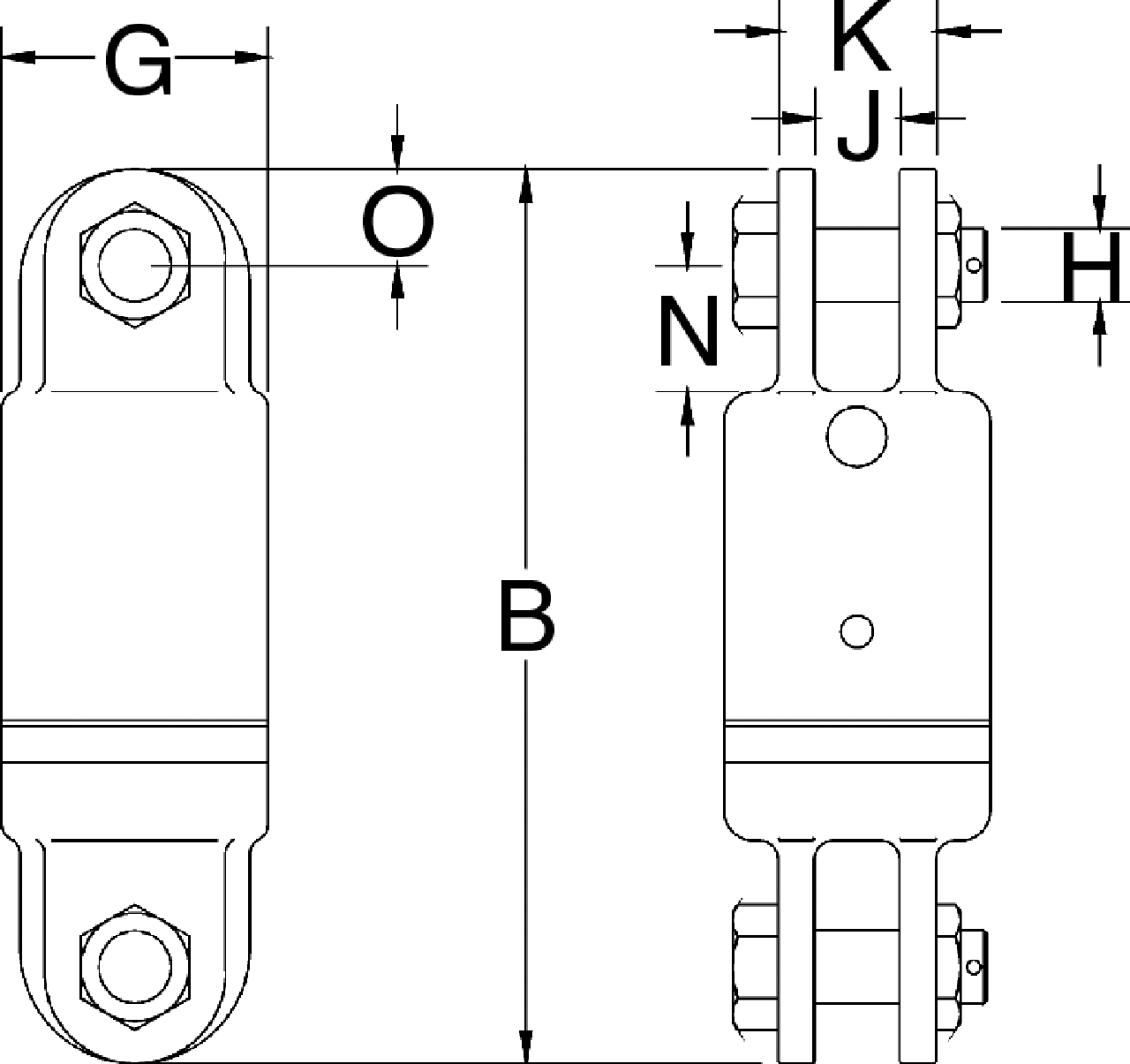

Part Code WLL
ton
Rope Ø
mm
Swivel No B
mm
G
mm
H
mm
J
mm
K
mm
N
mm
O
mm
Weight
kg
CAD
På forespørsel 3 13 3-S-2 236 70,0 19,1 22,4 41,1 33,3 25,4 4.37
07.30S205 5 16 5-S-2 262 76,0 22,4 25,4 57,0 41,1 28,4 6.21
11.450297422 8.5 19 8-S-2 321 102 25,4 39,5 71,5 54,0 35,1 11.9
På forespørsel 10 22 10-S-2 426 114 38,1 44,5 86,0 89,0 44,5 20.8
På forespørsel 15 26 15-S-2 435 127 38,1 44,5 86,0 89,0 44,5 28.5
På forespørsel 25 25-S-2 527 152 51,0 51,0 117 93,5 60,5 64
På forespørsel 35 35-S-2 527 165 51,0 51,0 117 93,5 60,5 70
På forespørsel 45 45-S-2 641 178 57,0 63,5 127 102 76,0 107
