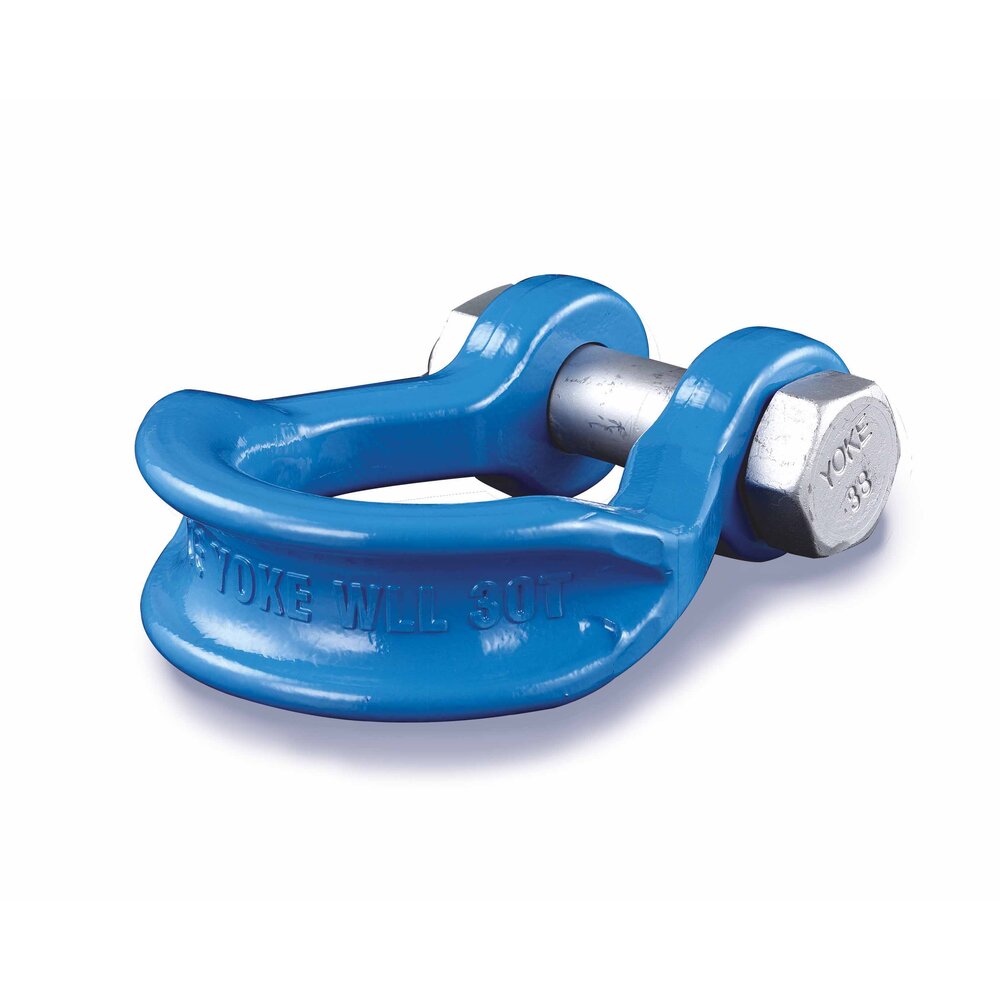

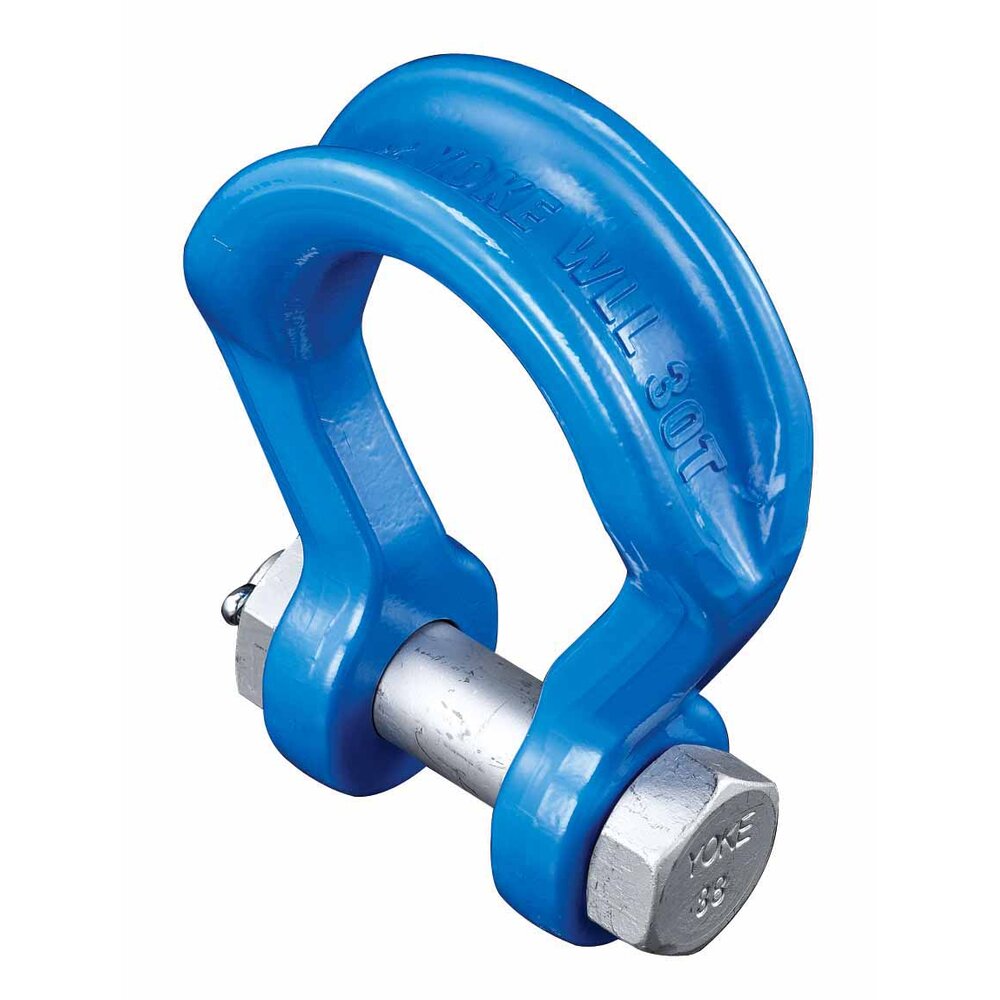

Shackle Wide Body 8-809

  • Forged alloy wide body shackle with bolt pin.
  • All shackles with batch Code which links to Test Certificate and quality traceability.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
  • 100% magnaflux crack detection during manufacturing.
  • Material: Shackles are forged alloy steel with alloy pin.
  • Marking: CE-marked, Size, WLL, manufacturer ID, traceability.
  • Temperature range: -40°C up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Safety factor: 5:1
  • Grade: 10
