General:
The IPHOZ horizontal lifting clamp is to be used for lifting and transferring, in the horizontal position, of thin sheet and other materials that will sag or bend when lifted. These clamps must be used in pairs or more.

Features:
• Available in capacities of .75 thru 15 metric tons.
• Wide variety of jaw openings available: 0 to 60mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: Only to be used in pairs.
Crosby IPHOZ Horizontal Lifting Clamps for thin sheets lifting. Must be used in pairs.

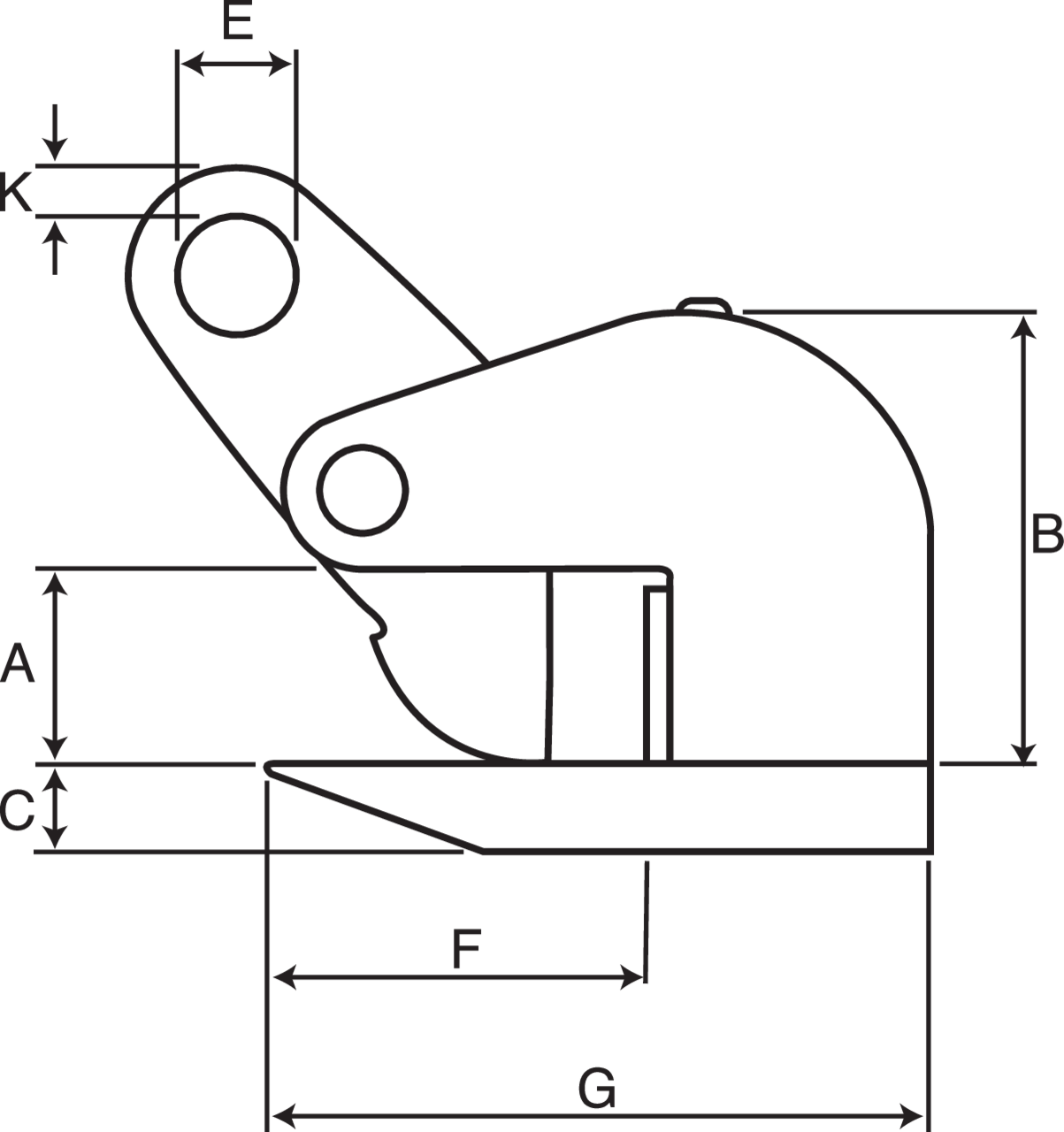

Crosby IPHOZ Horizontal Lifting Clamps measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Jaw width
mm
I P Model. B
mm
C
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Weight
kg
CAD
06.150075IPHOZ 0.75 0-30 0.75-IPHOZ 94 16 16 70 118 81 12 31 12 3 -
06.15015IPHOZ 1.5 0-45 1.5-IPHOZ 133 16 22 125 192 100 16 36 12 5.5 -
16.012705477 3 0-45 3-IPHOZ 137 20 26 125 200 120 20 48 10 8 -
06.15060IPHOZ 6 0-60 6-IPHOZ 171 30 36 135 235 130 20 56 20 15.5 -

The Working Load Limit in the table is per pair (ton/pair)
