Beam clamp designed specifically to provide maximum grab width adjustment. Incorporating adjusting mechanism and lifting shackle.
Proof load: 2 x WLL.

  • Finish: Yellow painted.
  • Note: All WLL apply to vertical lifting only.
  • Safety factor: 5:1
Product Image 2
Select a row from the table below, then click the add to quote button

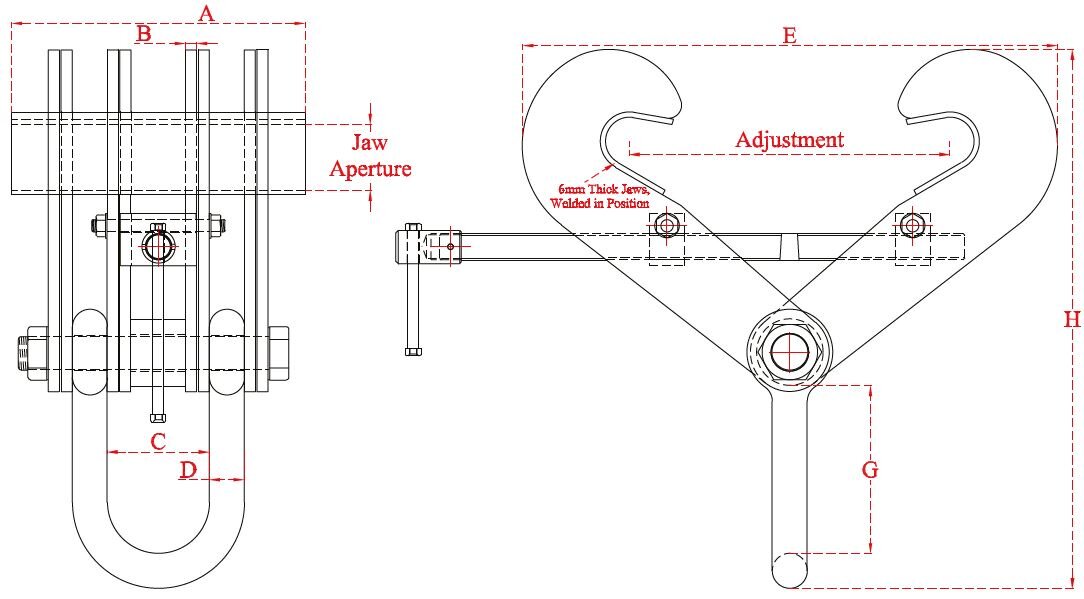

Part Code Code WLL
ton
Beam width
mm
B
mm
T
mm
U
mm
Weight
kg
06.1609S1 S1 2 76-190 22 95 3 4
06.1609S2 S2 3 76-190 22 95 6 5.1
06.1609S2AX S2A 3 76-190 22 95 12,5 8
06.1609S3 S3 4 150-254 22 99 10 11
06.1609S4S S4S 6 203-457 42 105 12,5 19
06.1609S4A S4A 10 203-457 42 130 20 27
