General:
The IPHOZ horizontal lifting clamp is to be used for lifting and transferring, in the horizontal position, of thin sheet and other materials that will sag or bend when lifted. These clamps must be used in pairs or more.

Features:
• Available in capacities of .75 thru 15 metric tons.
• Wide variety of jaw openings available: 0 to 60mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: Only to be used in pairs.
IPHOZ
IPHOZ tek E
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
I P Model. Jaw width (mm) B
mm
C
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Weight
kg

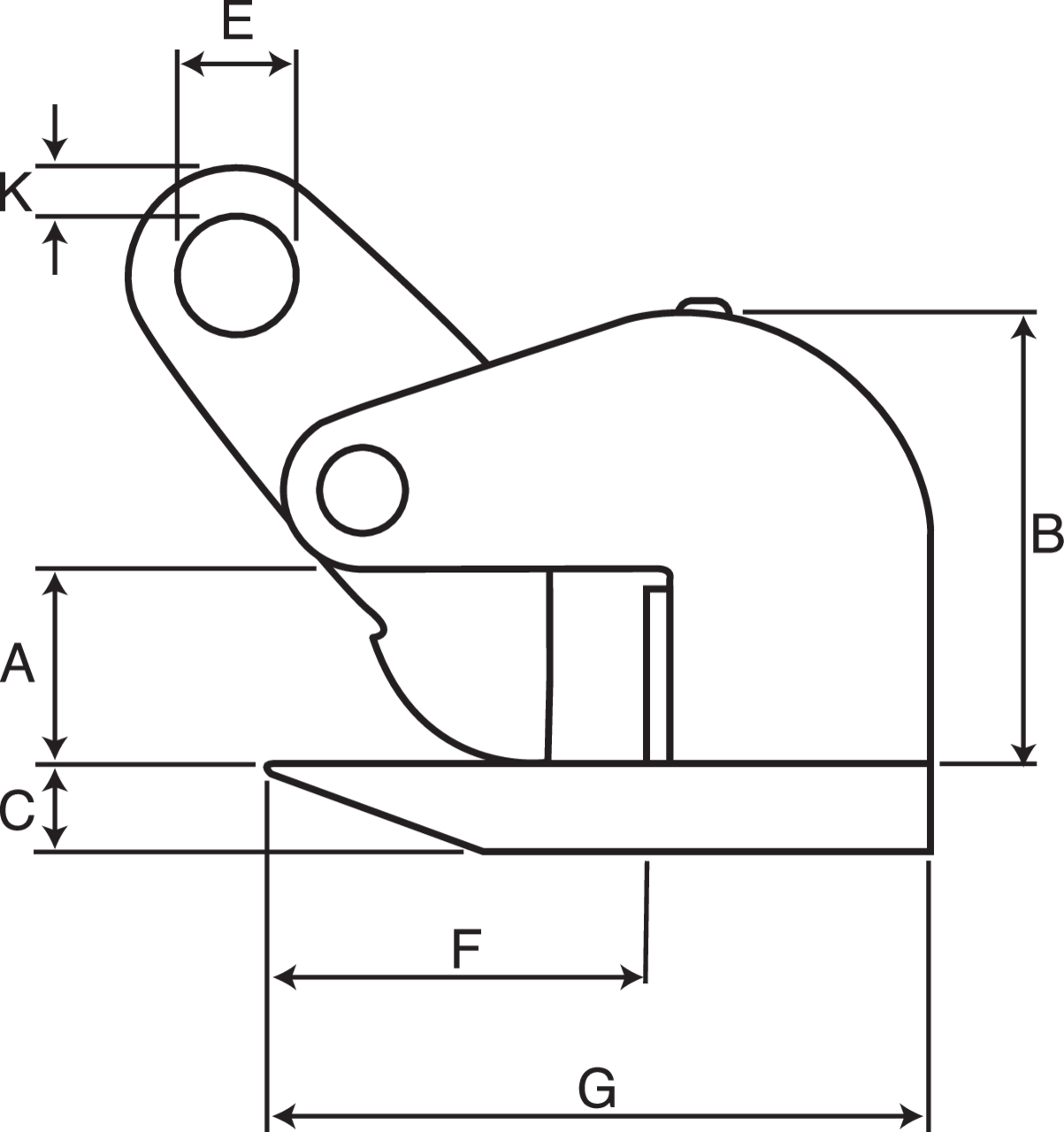

CAD
16.012705401 0.75 0.75-IPHOZ 0 - 30 94 16 16 70 118 81 12 31 12 3
16.012705402 1.5 1.5-IPHOZ 0 - 45 133 16 22 125 192 100 16 36 12 5.5
16.012705403 3 3-IPHOZ 0 - 45 137 20 26 125 200 120 20 48 10 8
16.012705404 4.5 4.5-IPHOZ 0 - 45 138 25 30 126 220 120 20 50 10 8.5
16.012705405 6 6-IPHOZ 0 - 60 171 30 36 135 235 130 20 56 20 15.5
16.012705406 9 9-IPHOZ 0 - 60 211 30 43 166 276 160 25 62 20 20.5
16.012705407 12 12-IPHOZ 0 - 60 217 40 47 168 294 190 25 62 38
16.012705408 15 15-IPHOZ 0 - 60 220 40 47 183 317 250 25 62 22 38

The Working Load Limit in the table is per pair (ton/pair)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
