Gunnebo Industries
Standard: DNV 2.7-1, U.S Fed.spec.RR-C-271 - EN13889.




Forging tolerances:+-5% on inside width/length.
  • Material: High tensile steel, quenched and tempered, grade 6.
  • Temperature range: -20°C to 200°C.
  • Finish: All parts hot dip galvanized, brown painted bolts/pins on top of galv.
  • Safety factor: 6:1
Shackle no 834_foto
Select a row from the table below, then click the add to quote button
Part Code WLL
ton

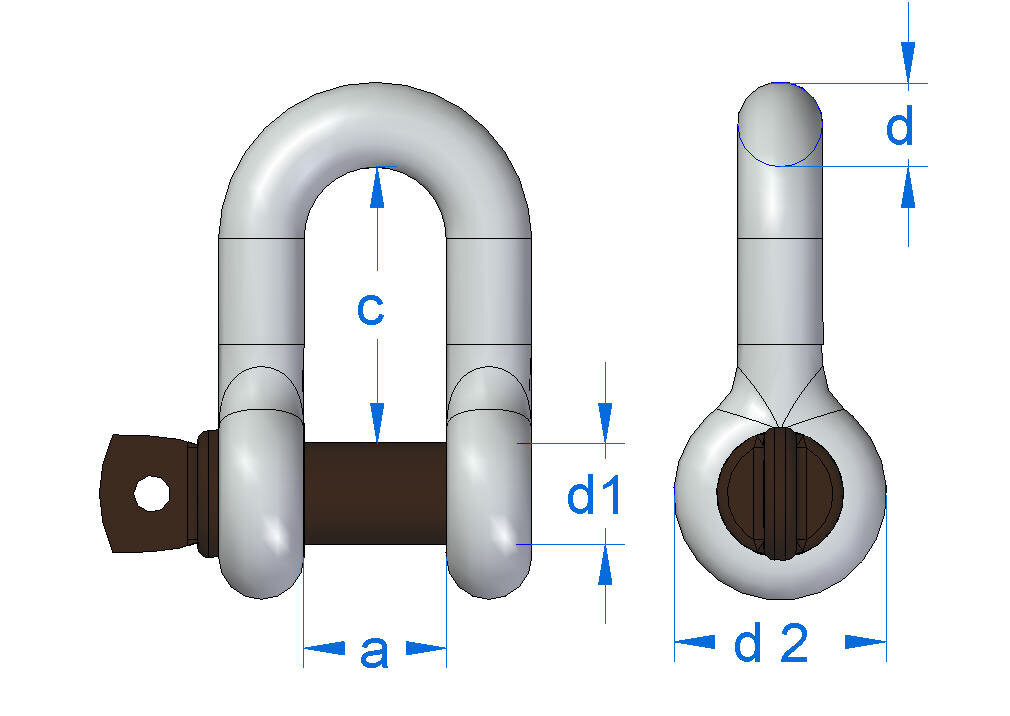

D (mm) D1 (mm) A (mm) C (mm) D2 (mm) Weight
kg
CAD
11.30A083406 0.5 1/4-7 8 12 25 12 0.06
11.30A083408 0.75 5/16" - 9 10 13,5 27 16 0.11
11.30A083409 1 3/8" - 10 11 17 31 20 0.15
11.30A083411 1.5 7/16" - 11 13 18,5 37 22 0.21
11.30A083413 2 1/2" - 13 16 21 41 33 0.25
11.30A083416 3.25 5/8" - 16 19 27 51 40 0.55
11.30A083419 4.75 3/4" - 19 22 31 60 47 1
11.30A083422 6.5 7/8" - 22 25 37 71 50 1.3
