Gunnebo Industries

Standard: DNV 2.7-1, U.S Fed.spec.RR-C-271 - EN13889.

Forging tolerances:+-5% on inside width/length.

  • Material: High tensile steel, quenched and tempered, grade 6.
  • Temperature range: -20°C to 200°C.
  • Finish: All parts hot dip galvanized, brown painted bolts/pins on top of galv.
  • Safety factor: 6:1

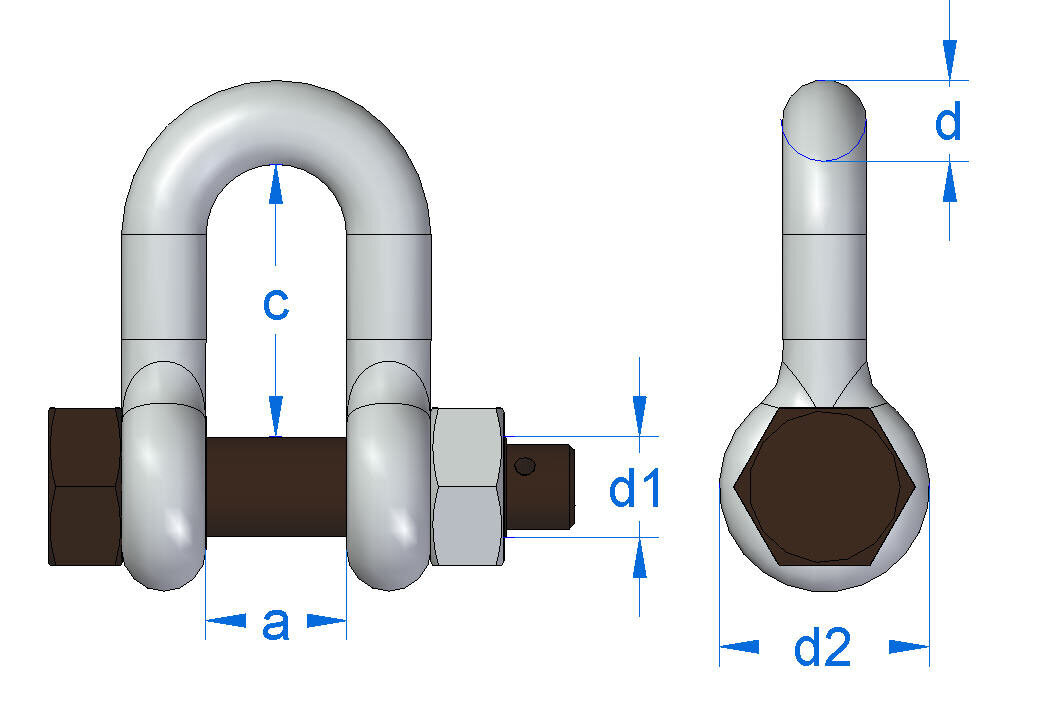

Shackle no 835_foto
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
D
mm
D1
mm
A
mm
C
mm
D2
mm
Weight
kg
CAD
08.5070325 3.25 5/8" - 16 19 27 51 40 0.6
08.5070475 4.75 3/4" - 19 22 31 60 47 1.1
08.507065 6.5 7/8" - 22 25 37 71 50 1.5
08.507085 8.5 1" - 25 28 43 81 58 2.2
08.507095 9.5 1.1/8" - 28 32 46 90 64 3.1
08.50712 12 1.1/4" - 32 35 52 100 72 4.2
08.507135 13.5 1.3/8" - 35 38 57 111 74 5.6
08.50717 17 1.1/2" - 38 42 60 122 84 7.5
08.50725 25 1.3/4" - 45 50 74 149 105 13

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
