Crosby

Design: Chain swivels with out bearing. According to Federal Specification RR-C-271F.

  • Material: Hot dip Galvanized - Quenched & Tempered
  • Marking: WLL
  • Finish: Galvanized
  • Note: The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.
  • Safety factor: 5:1
G-402 regular swivel

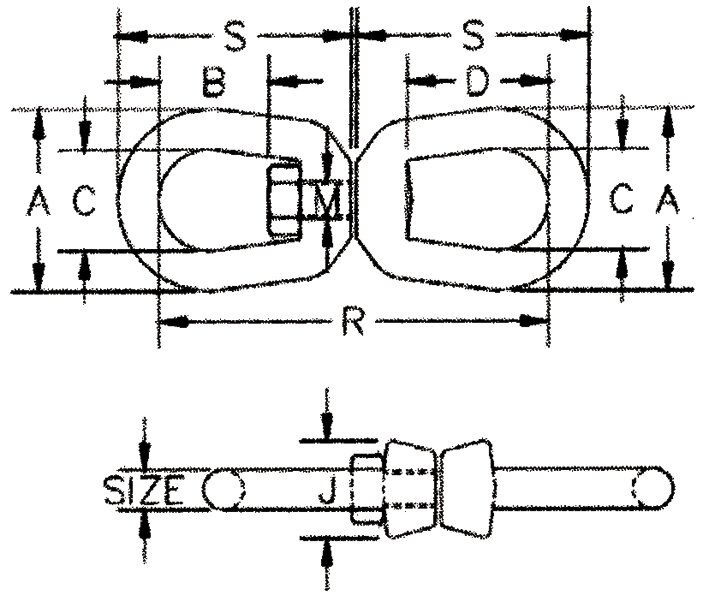

Drawing G-402 regular swivel
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
A
mm
B
mm
C
mm
D
mm
J
mm
M
mm
R
mm
S
mm
Weight
kg
07.305304 13 1.63 63.5 33.3 38.1 51,0 33,3 16,0 138 81,0 0.6
07.305305 16 2.36 76 39.5 44,5 60,5 38,1 19,1 167 98,5 1.13
07.305309 22 4.54 102 52 57,0 77,5 54,0 25,4 213 127 2.83
07.305308 25 5.67 114 58.5 63,5 89,0 60,5 28,7 245 146 4.06
07.305310 32 8.16 143 68.5 79,5 93,5 76,0 38.1 291 172 7.42
07.305311 38 20.5 180 98.5 104 98.5 95.2 57,0 424 252 20.8
