Crosby

Design: Swivel with jaw and eye equipped with tapered roller thrust bearing.

Features:

  • Suitable for frequent rotation under load.
  • All swivels individually Proof Tested to 2 times the Working Load Limit.
  • Pressure lube fitting provided
  • All jaws complete with bolts, nuts and cotter pins.
  • Other types and capacities up to 1250t available on demand.
  • Marking: CE-marked
  • Note: Always check before use if your steel wire rope is suitable for use with a swivel.
  • Warning: Not to be used on demolition- (wrecking-) balls!
  • Safety factor: 5:1
Crosby S3_J&E

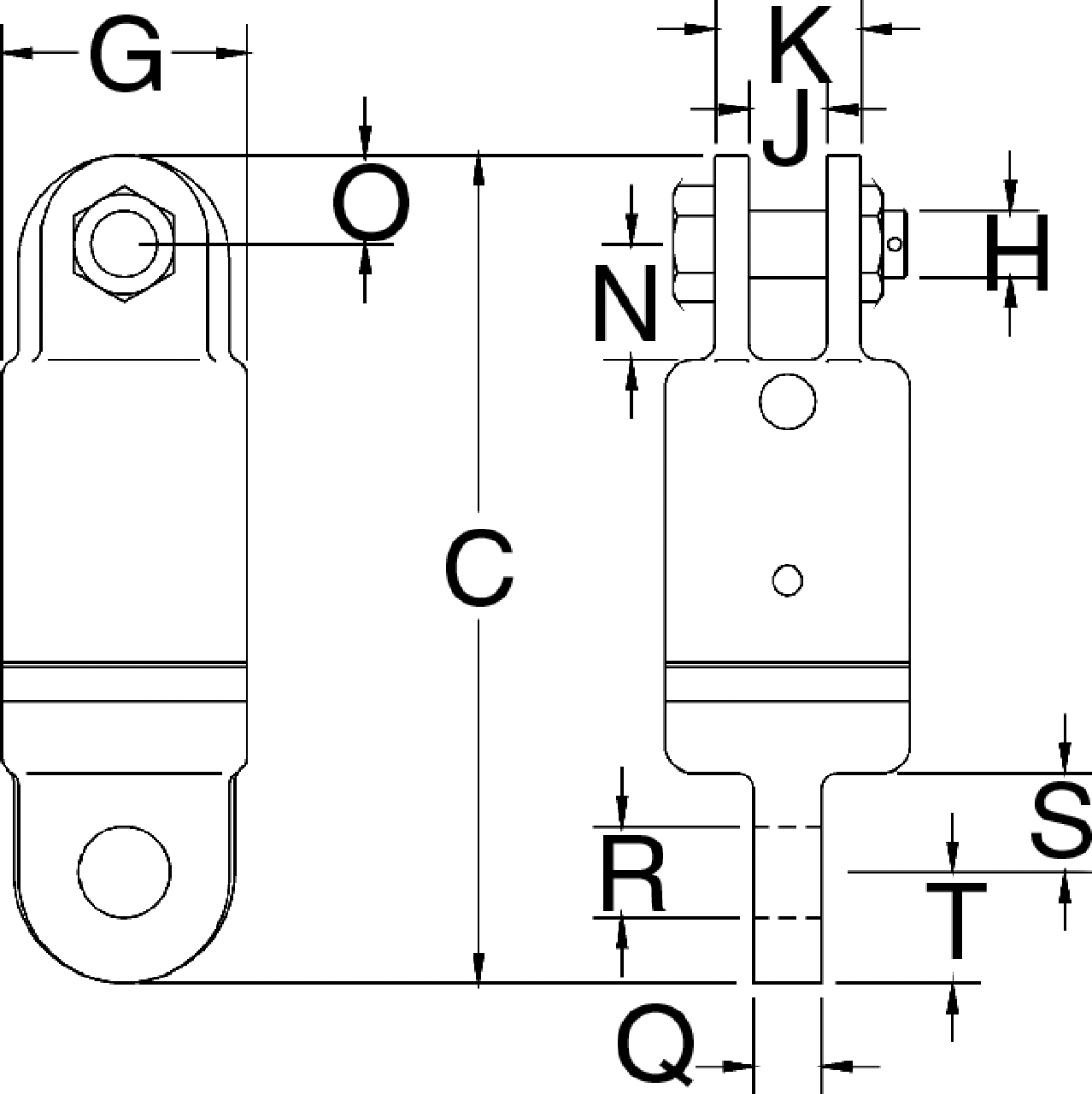

S3_J&Edwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Swivel No C
mm
G
mm
H
mm
J
mm
K
mm
N
mm
O
mm
Q
mm
R
mm
S
mm
T
mm
Weight
kg
07.30S305 5 16 5-S-3 256 76,0 22,4 25,4 57,0 41,1 28,4 25,4 32,5 31,8 31,8 6.12
07.30S3085 8.5 19 8-S-3 311 102 25,4 39,5 71,5 54,0 35,1 31,8 35,8 41,1 38,1 11.3
