Gunnebo Industries

Bow shackle with safety bolt

U.S. Fed. Spec. RR-C-271 Type IVA Class 3, Grade B

  • Material: High tensile steel, quenched and tempered
  • Marking: WLL
  • Temperature range: -20°C to 200°C
  • Finish: All parts hot dip galvanized + brown colour marking
  • Safety factor: 5:1
  • Grade: 8
Super Shackle no 858, Gunnebo with safety Bolt

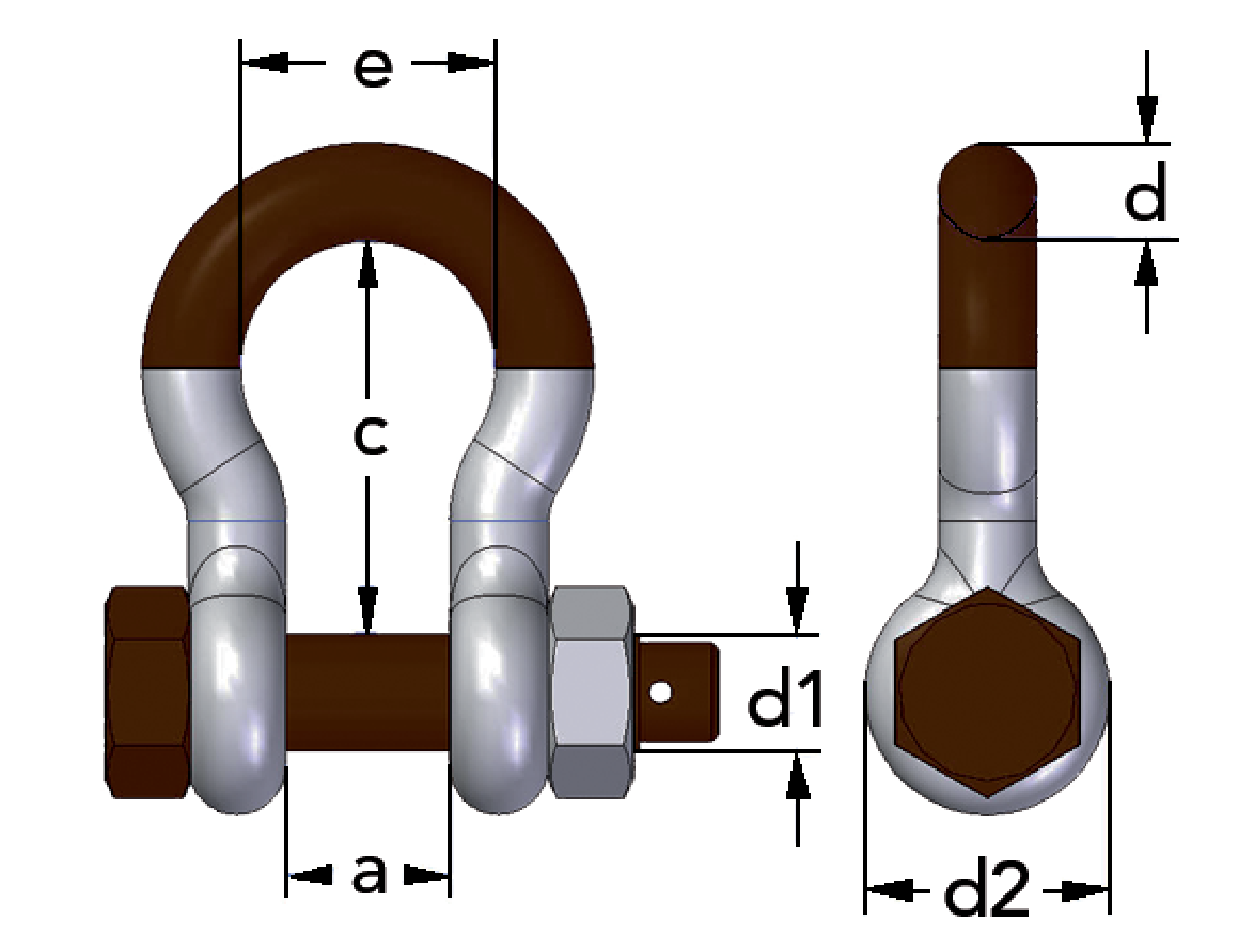

Super Shackle no 858, Gunnebo, measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
a
mm
c
mm
d
mm
d1
mm
d2
mm
e
mm
Weight
kg
08.50650033 3.3 21 51 1/2" - 13 16 33 33 0.44
08.5065005 5 27 60 5/8" - 16 19 40 42 0.79
08.5065007 7 31 71 3/4" - 19 22 48 49 1.26
08.50650095 9.5 37 84 7/8" - 22 25 52 60 1.88
08.50650125 12.5 43 95 1" - 25 28 60 68 2.78
08.5065015 15 46 108 1 1/8" - 28 32 64 74 3.55
08.5065018 18 52 119 1 1/4" - 32 35 72 83 5.26
08.5065021 21 57 132 1 3/8" - 35 38 76 89 6.94
08.5065030 30 60 146 1 1/2" - 38 42 84 98 8.79
08.5065040 40 74 178 1 3/4" - 45 50 105 127 15
**Tolerance: +/- 5%
