Gunnebo Industries
  • Material: High tensile steel, quenched and tempered
  • Marking: According to standard, CE-marked
  • Temperature range: -20°C to 200°C
  • Finish: All load bearing parts hot dip galvanized
  • Standard: EN 13889
  • Safety factor: 5:1
ROV Release Shackle no 863 Gunnebo
ROV Release Shackle no 863 Gunnebo

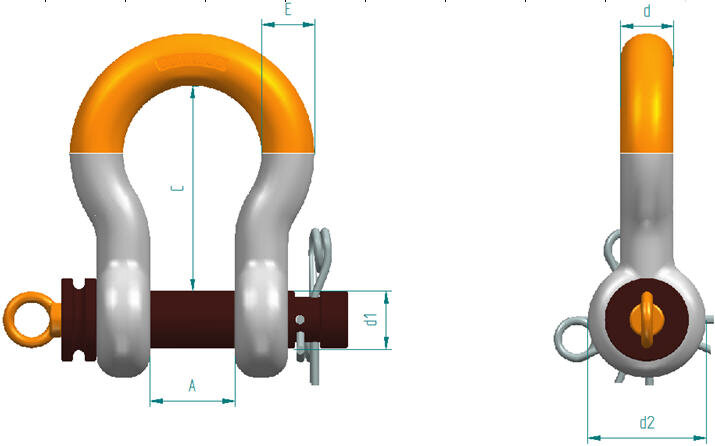

ROV Release Shackle no 863 Gunnebo measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
a
mm
c
mm
d
mm
d1
mm
d2
mm
e
mm
Weight
kg
11.30A086322 6.5 37 84 22 25 52 58 1.5
11.30A086325 9.5 46 108 28 32 64 74 3.2
11.30A086332 12 52 119 32 35 72 83 4.5
11.30A086338 17 60 146 38 42 84 98 7.8
11.30A086345 25 74 178 45 50 105 127 13.9
11.30A086352 35 83 197 50 57 127 138 19.04
11.30A086364 55 105 260 65 70 152 180 39.59
