Gunnebo Industries

Standard: DNV 2.7-1, U.S Fed.spec.RR-C-271 - EN13889.

Forging tolerances:+-5% on inside width/length.

  • Material: High tensile steel, quenched and tempered.
  • Temperature range: -20°C to 200°C.
  • Finish: All parts hot dip galvanized, brown painted bolts/pins on top of galv.
  • Safety factor: 6:1
  • Grade: 6
Dee Shackle no 834 Gunnebo

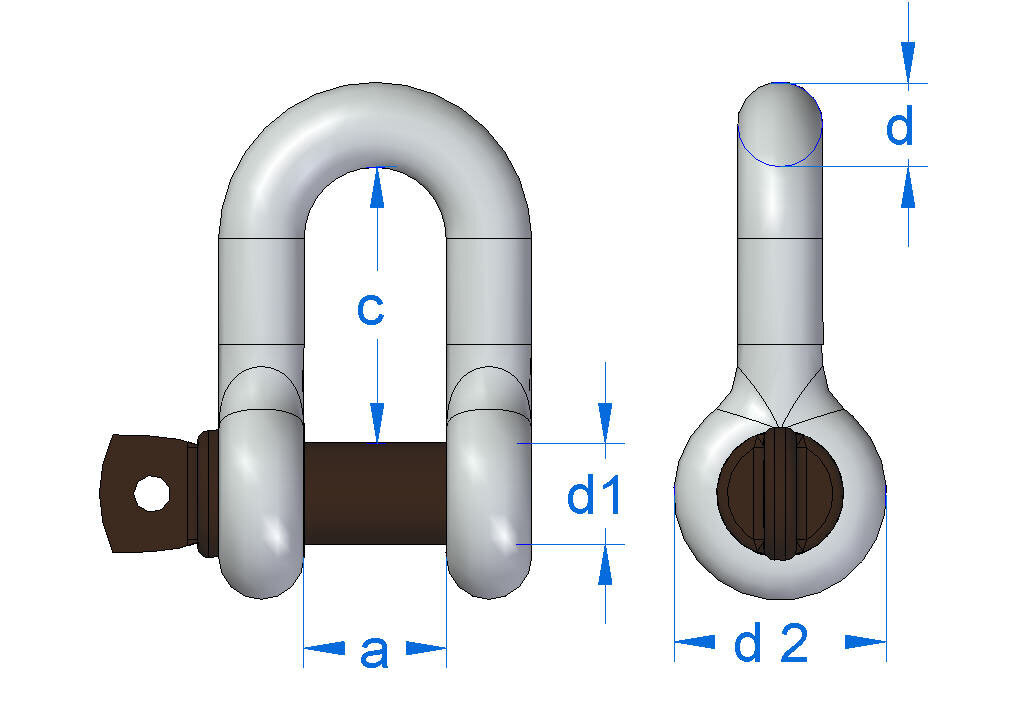

Gunnebo Dee shackle No. 834 measurements
Select a row from the table below, then click the add to quote button
Part Code WLL Weight
08.302005 0.5 0.06
08.3020075 0.75 0.11
08.30201 1 0.15
08.302015 1.5 0.21
08.30202 2 0.25
08.3020325 3.25 0.55
08.3020475 4.75 1
08.302065 6.5 1.3
