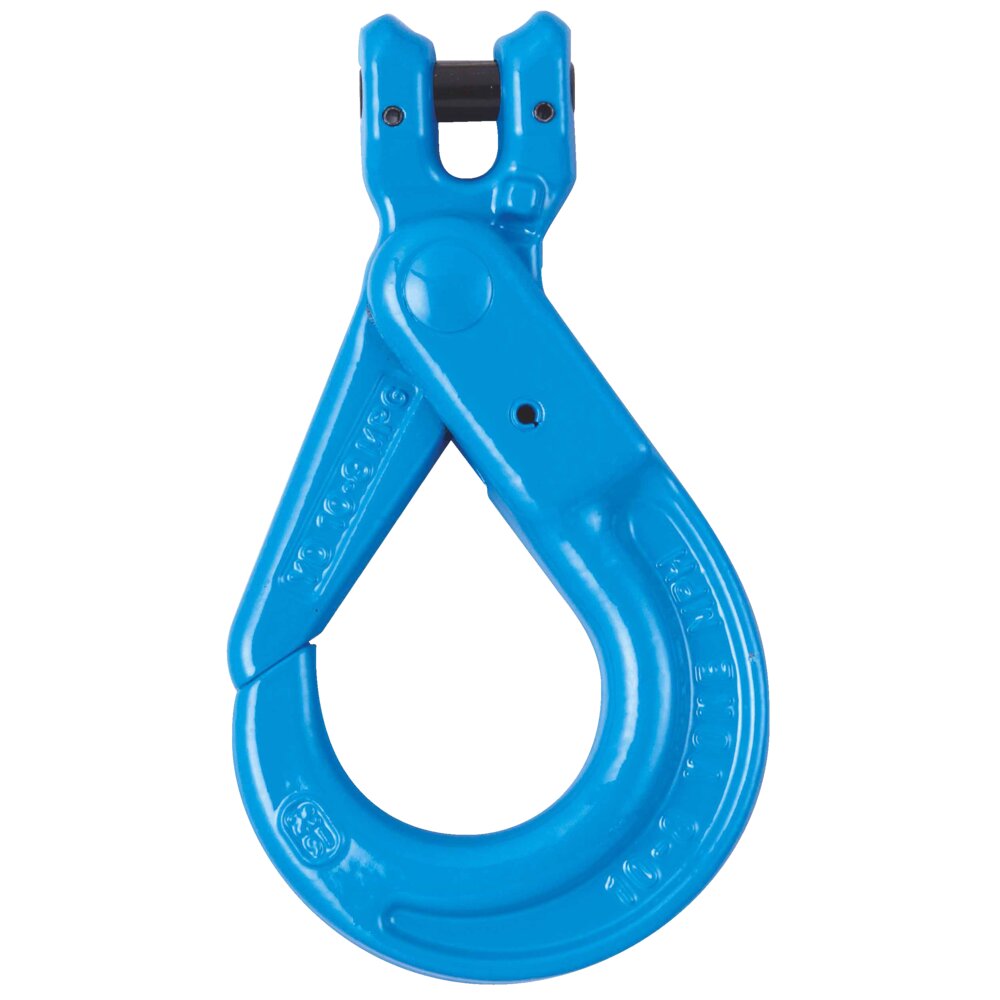

Clevis Self Locking Hook X-026

  • At least 25% greater WLL than traditional Grade 8 products.
  • Manufactured in accordance with EN 1677-3 and ASME B30.26.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Tempering temperature minimum

Show more

Product number:
  • At least 25% greater WLL than traditional Grade 8 products.
  • Manufactured in accordance with EN 1677-3 and ASME B30.26.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Tempering temperature minimum 400°C.
  • Magnaflux crack detection is performed 100% on each batch.



When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, Size, grade, manufacturer ID, traceability.
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-3
  • Safety factor: 4:1
  • Grade: 10
