Adverse weather and rough sea conditions in combination with extremely low temperaturs, as often encounered in the North Sea for instance, places tough requirements on the Products used. Gunnebo Industries has a range of shackles specially designed for these conditions.
Standard: DNV 2.7-1, U.S Fed.spec.RR-C-271

  • Material: Special Alloy Steel, quenched and tempered.
  • Marking: According to standard
  • Temperature range: -40°C to 200°C.
  • Finish: All parts hot dip galvanized, brown colour making
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 8

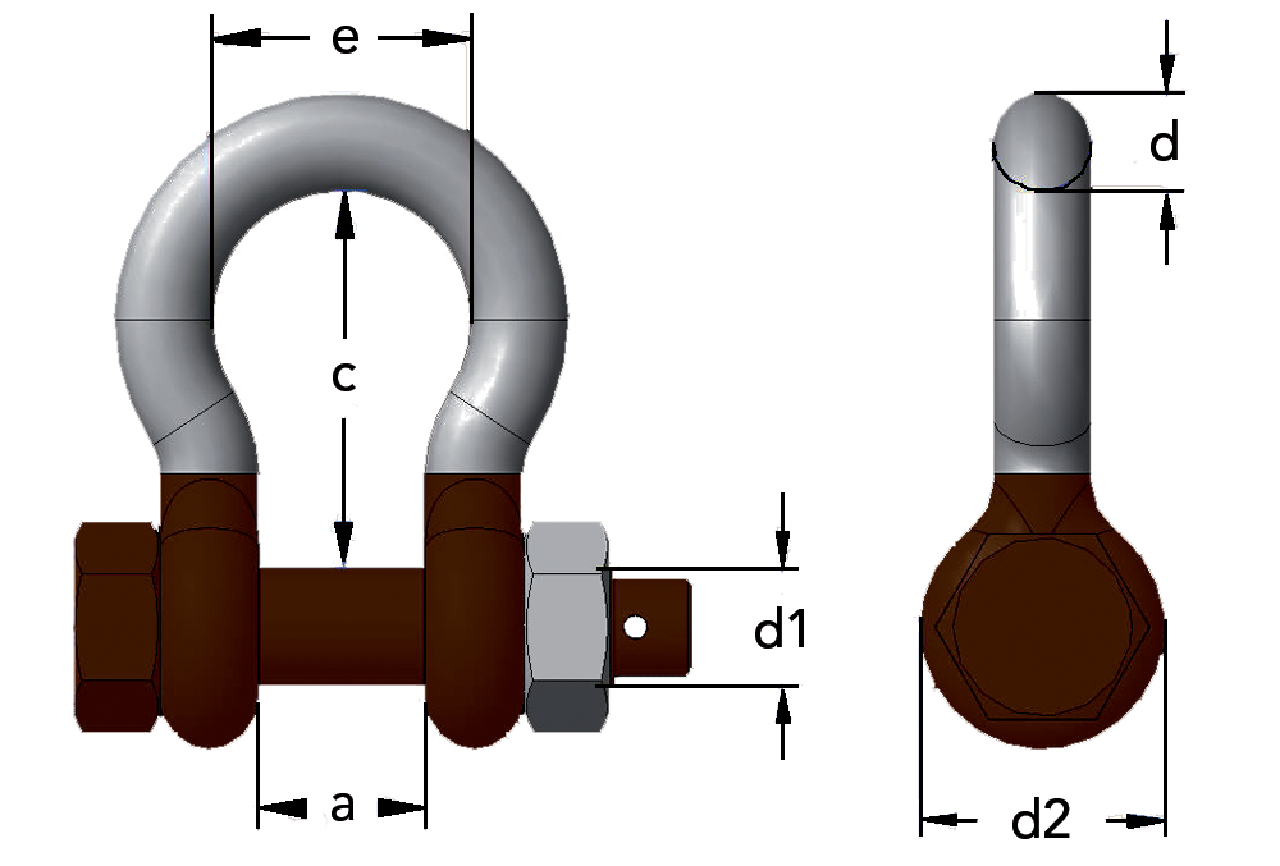

Shackle no 856_foto
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
a
mm
c
mm
d
mm
d1
mm
d2
mm
e
mm
Weight
kg
CAD
08.506002GPP 2 21 47 1/2" - 13 16 33 33 0.42
08.50600325GPP 3.25 27 60 5/8" - 16 19 40 42 0.7
08.50600475GPP 4.75 31 71 3/4" - 19 22 47 51 1.2
08.5060065GPP 6.5 37 84 7/8" - 22 25 52 58 1.7
08.5060085GPP 8.5 43 95 1" - 25 28 58 68 2.5
08.5060095GPP 9.5 46 108 1 1/8" - 28 32 64 74 3.4
08.506012GPP 12 52 119 1 1/4" - 32 35 72 83 4.8
08.5060135GPP 13.5 57 132 1 3/8" - 35 38 74 89 7
08.506017GPP 17 60 146 1 1/2" - 38 42 84 98 9
08.506025GPP 25 74 178 1 3/4" - 45 50 105 127 15
08.506035GPP 35 83 197 2" - 50 57 119 138 21
08.506055GPP 55 105 255 2 1/2" - 65 70 145 185 41

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
