General: Rope with high breaking force and has 1/7 less weight compared to steel wire rope. It has a long service life. It has a low operational cost, low elongation, it is flexible, non-kinking and non-rotating, easy to splice. It is used in applications like mooring lines, anchor lines, winch lines and towing and tug ropes. Excellent UV resistance

Design: Braided 12-plait.
Specific gravity: 0,96 (floats).
Melting point: 150 °C
Elongation at 10% at break load: 0,60 %
Standard: ISO 10325

  • Material: Dyneema SK78 fibres, coated for impoved protection against weathering and abrasion.
  • Finish: Yellow.

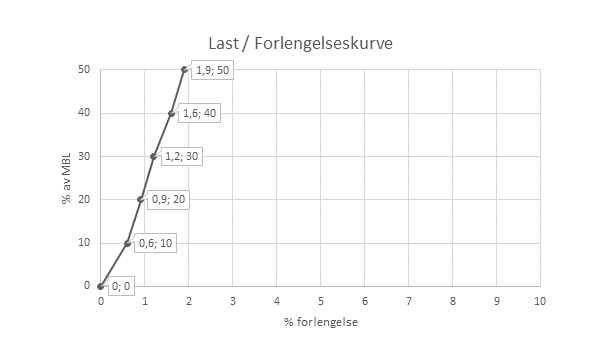

SK78 curve
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Breaking LoadReal* kN Breaking LoadLinear** (kN) Breaking Lenght*** (km) Weight
kg/100m
CAD
12.12DDT040SPL1600 4 14,0 15,6 0.84
12.12DDT060SPL1000 6 31,9 35,4 316 1.9
12.12DDT080SPL1000 8 55,9 62,1 187 3.3
12.12DDT100SPL1000 10 79,8 88,6 201 4.8
12.12DDT120SPL1000 12 119,5 132,8 173 7.2
12.12DDT140SPL1000 14 167,5 186,1 170 10
12.12DDT160SPL1000 16 191,5 212,8 177 11.5
12.12DDT180SPL1000 18 243,0 270,0 165 15.3
12.12DDT200SPL840 20 308,5 342,8 157 20.1
12.12DDT240SPL600 24 360,0 485,0 159 23.4
