We deliver quality mooring bolt grade 6

  • Material: High Tensile Steel. Quenched and Pempered, Grade 6
  • Finish: All parts hot dip galvanized + brown colour marking
Select a row from the table below, then click the add to quote button
Part Code MBL
t

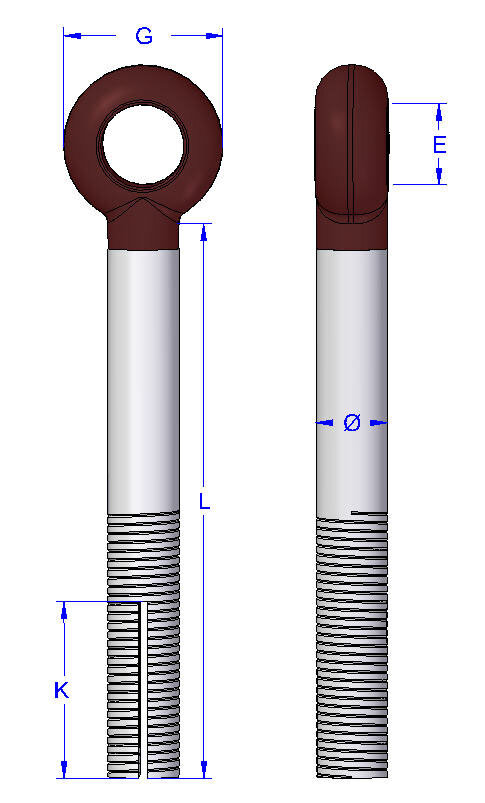

Dim ØxL G
mm
E
mm
Weight
kg
CAD
99.NO4612036180 40 32X400 72 38 3.25
99.NO4612036185 60 38X500 84 46 5.6
99.NO4612036190 80 45X600 105 54 10.1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Art.no
Description
11.56A9X100134
Wedge for mooring bolt
