• Not for lifting

General: Chain used in fish farming applications.

  • Material: Alloy steel.
  • Finish: Hot dip galvanized.
Select a row from the table below, then click the add to quote button

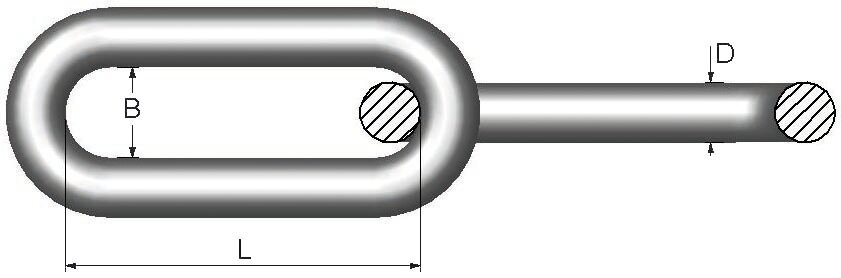

Part Code Chain diameter
mm
Min. breaking force
kN
Dimension proof force
kN
D
mm
L
mm
B
mm
Weight
kg/m
99.NO4510654998 10 122 11x66 61 10 66 18 2.1
99.NO4510655000 13 170 13x81 85 13 81 22 2.7
99.NO4510652100 16 257 16x100 129 16 100 26 4.4
99.NO4510652104 19 363 19x100 182 19 100 28 6.5
99.NO4510652115 22 487 22x120 244 22 120 32 8.5
99.NO4510652125 25 628 25x140 314 25 140 39 11
