General: A grade 8 shackle for higher working load with smaller dimensions compared to regular grade 6 shackles.
Design: Forged according to. U.S. specification RR-C-271.

  • Material: High tensile steel, quenched and tempered, grade 8.
  • Marking: WLL.
  • Temperature range: -20°C to 200°C except 150 t = 0°C to 200°C
  • Finish: All parts hot dip galvanized, brown painted bolts/pins on top of galv.
  • Safety factor: 5:1
Bow_shackle_grade8_screw
1232m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

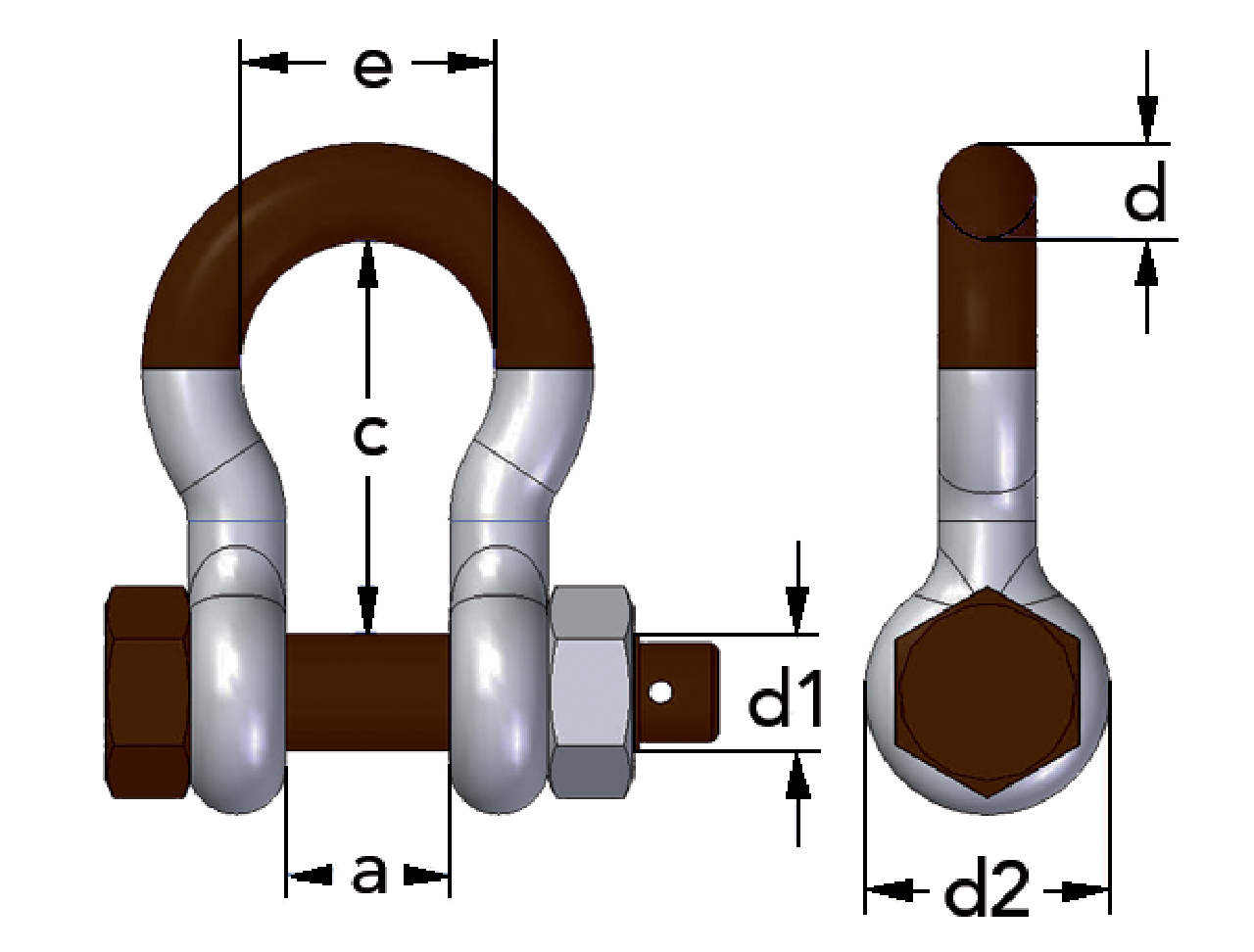

Pin Ø d1 A
mm
c*
mm
D
mm
D2
mm
e
mm
Weight
kg
CAD
08.50650033 04.7085813 3.3 16 21 51 1/2" - 13 33 33 0.4
08.5065005 04.7085816 5 19 27 60 5/8" - 16 40 42 0.7
08.5065007 04.7085819 7 22 31 71 3/4" - 19 47 51 1.2
08.50650095 04.7085822 9.5 25 37 84 7/8" - 22 52 58 1.7
08.50650125 04.7085825 12.5 28 43 95 1" - 25 58 68 2.5
08.5065015 04.7085828 15 32 46 108 1 1/8" - 28 64 74 3.4
08.5065018 04.7085832 18 35 52 119 1 1/4" - 32 72 83 4.8
08.5065021 04.7085835 21 38 57 132 1 3/8" - 35 74 89 7
08.5065030 04.7085838 30 42 60 146 1 1/2" - 38 89 99 8.8
08.5065040 04.7085845 40 50 74 178 1 3/4" - 45 105 126 15
08.5065050 04.7085857 55 57 83 197 2" - 57 117 138 22
08.5065080 04.7085870 85 70 105 260 2 1/2" - 70 143 180 38
08.5065110 04.7085883 120 83 127 329 3 1/4" - 83 162 190 70
**Tolerance: +/- 5%
