Crosby

Design: Chain swivels with out bearing. According to Federal Specification RR-C-271F.

  • Material: Hot dip Galvanized - Quenched & Tempered
  • Marking: WLL
  • Finish: Galvanized
  • Note: The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

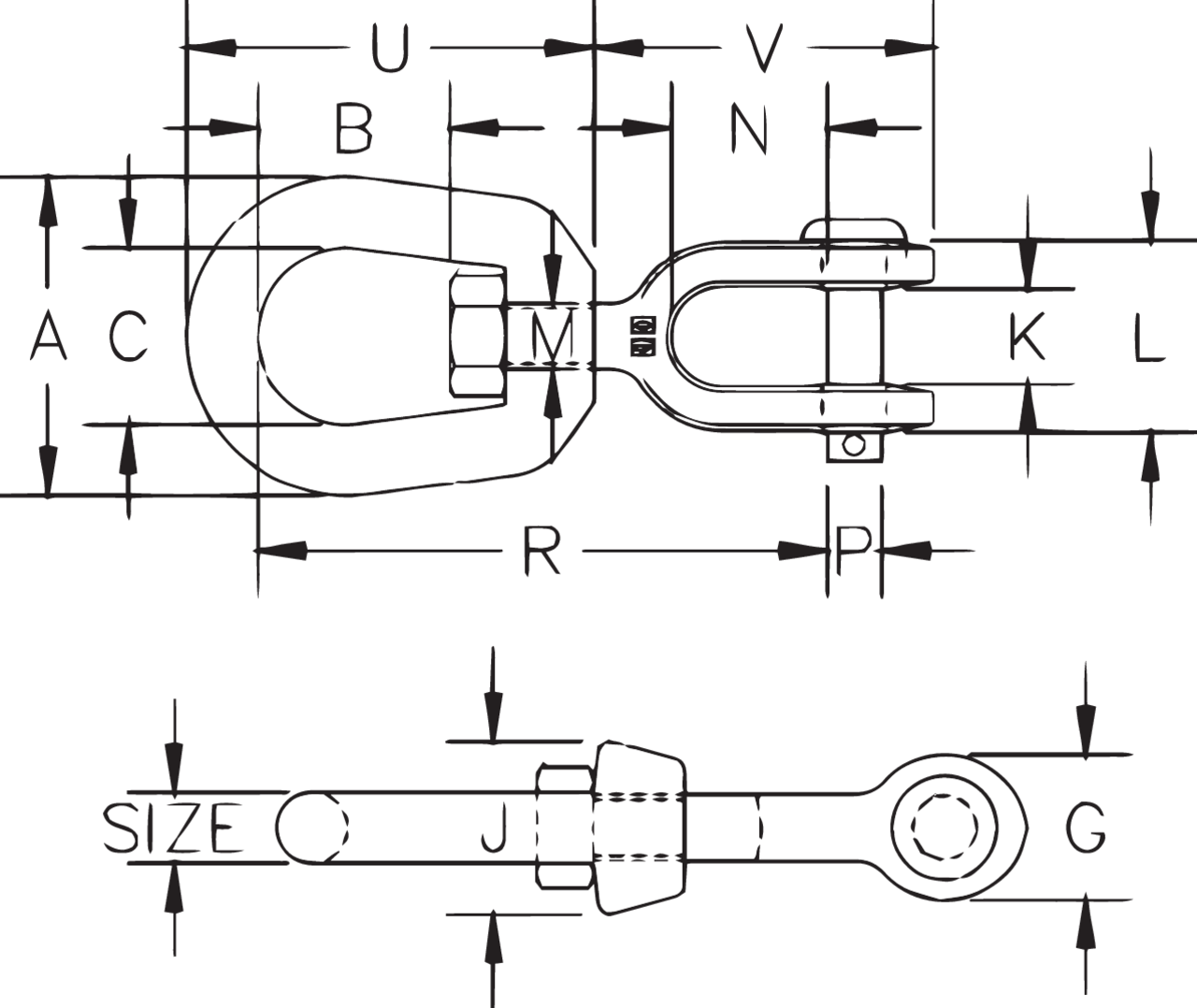

Part Code Diameter
mm
WLL
ton
A
mm
B
mm
C
mm
G
mm
J
mm
K
mm
L
mm
M
mm
N
mm
P
mm
R
mm
U
mm
V
mm
Weight
kg
CAD
07.305351 6 0.39 31,8 17,5 19,1 17,5 17,5 11,9 26,2 7,85 22,4 6,35 67,0 42,9 42,9 0.1
På forespørsel 8 0.57 41,4 20,6 25,4 20,6 20,6 12,7 28,7 9,65 22,4 7,85 74,5 52,0 46,0 0.15
07.305353 10 1.02 51,0 23,9 31,8 25,4 25,4 16,0 35,8 12,7 26,9 9,65 92,0 63,5 57,0 0.3
07.305354 13 1.63 63,5 33,3 38,1 33,3 33,3 19,1 44,5 16,0 33,3 12,7 114 81,0 73,0 0.61
07.305355 16 2.36 76,0 39,5 44,5 41,4 38,1 23,9 52,0 19,1 38,1 16,0 135 98,5 87,50 1.12
På forespørsel 19 3.27 89,0 44,5 51,0 47,8 47,8 28,7 64,5 22,4 44,5 19,1 154 109 102 1.76
07.305357 22 4.54 102 52,0 57,0 54,0 54,0 34 70,9 25,4 52,0 22,4 178 127 115 2.66
07.305358 25 5.67 114 58,5 63,5 67,0 60,5 44,5 94,5 28,7 71,5 28,7 217 146 151 4.46
07.305360 32 8.16 145 68,5 79,5 79,5 76,0 52,0 109 41,4 71,5 35,1 240 171 162 7.14
På forespørsel 38 20.5 178 98,5 102 143 102 73,0 152 57,0 113 57,0 374 254 275 24.8
