End fittings are quenched and tempered, bodies heat treated by normalizing.

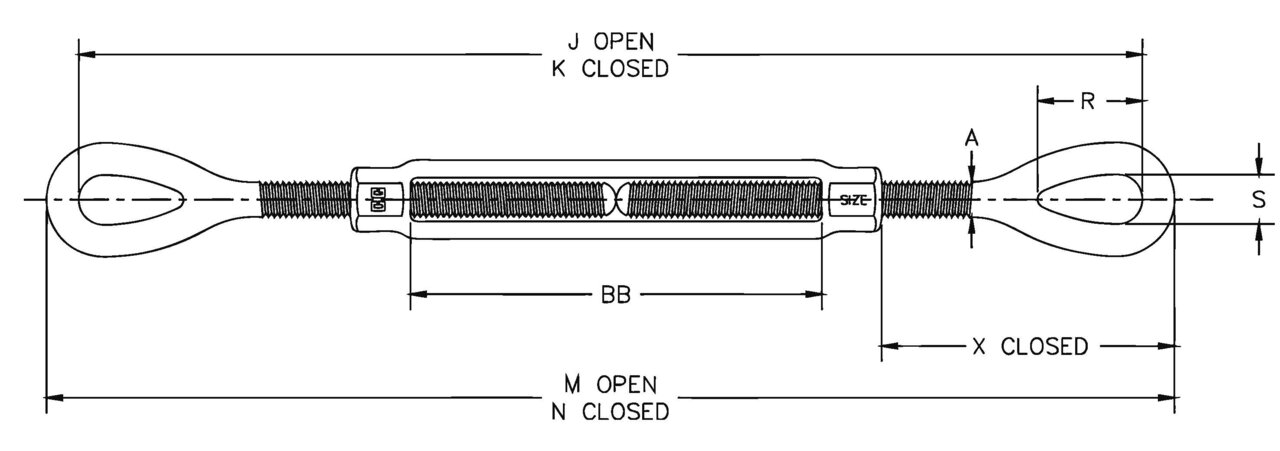

Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 6 mm through 64 mm, a shackle one size smaller can be reeved through eye.
Standard: According to Federal Specifications FF-T-791b.
- Marking: Logo, size and type.
- Finish: Hot dipped galvanized.
- Note: Turnbuckles recommended for straight or in-line pull only.
- Safety factor: 5:1
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
