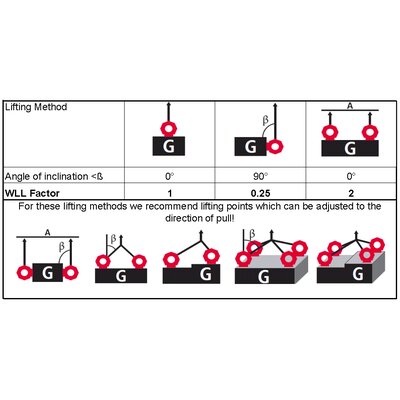

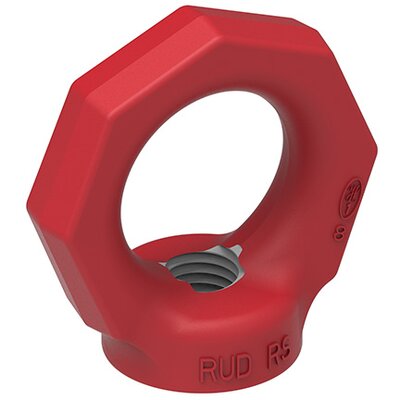

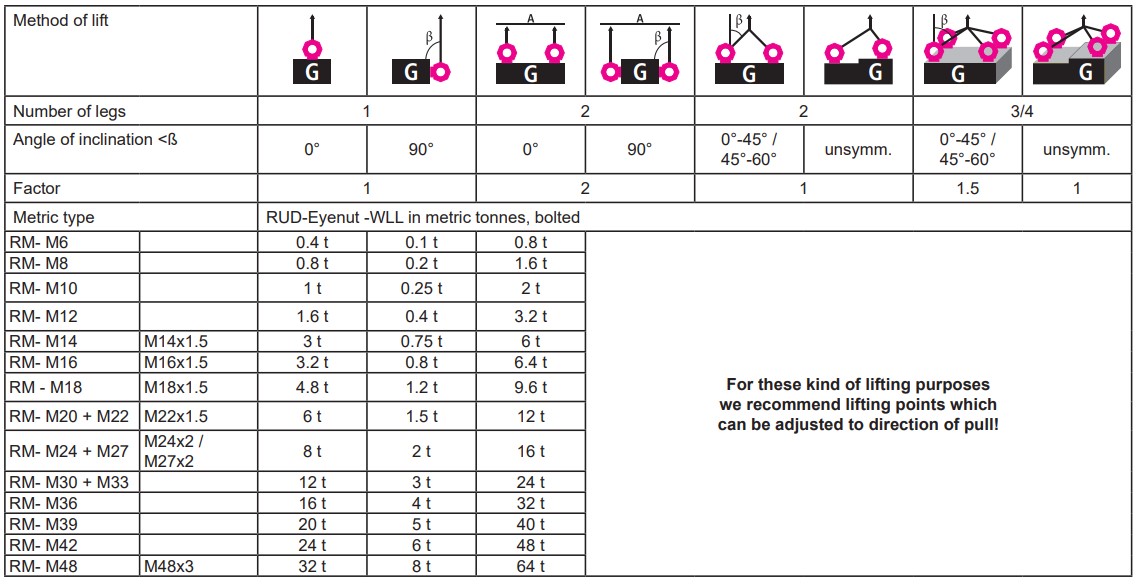

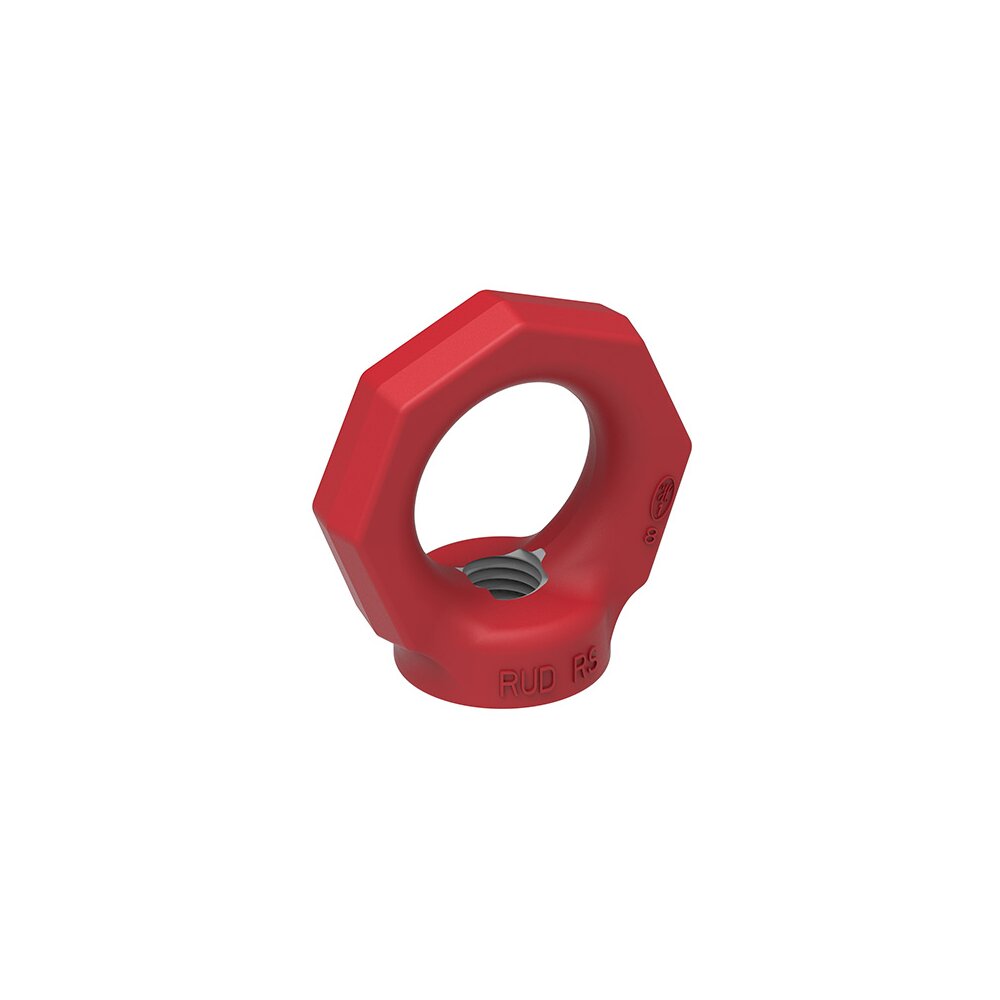

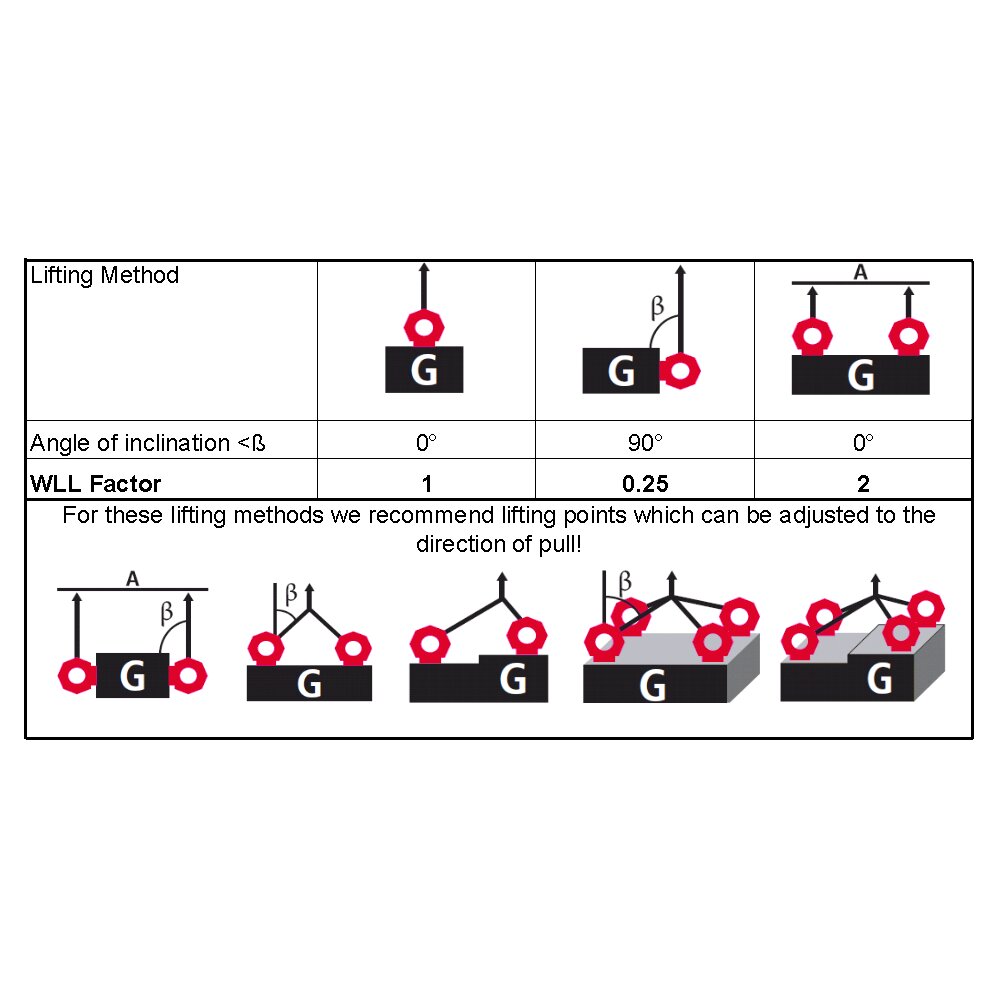

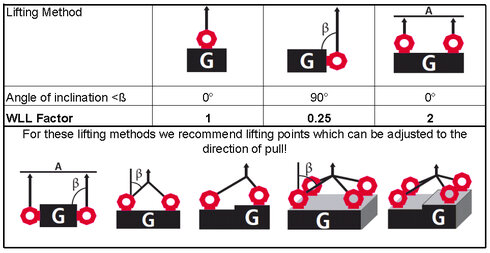

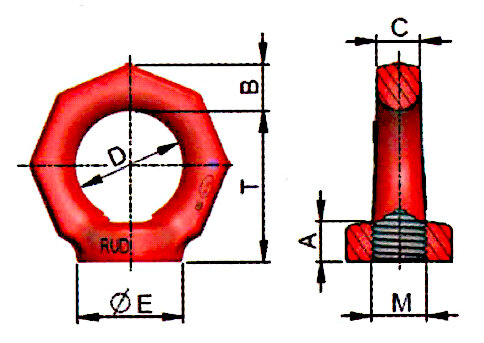

Octagonal lifting eye approved for lifting. Llifting with an angle of inclination is allowed with reduction of WLL (see diagram at blueprint) but we strongly recomment to use the Rud RM lifting eye only for straight lifting.
Applied harmonized norms: DIN EN ISO 12100: 2011-03
- Material: Forged high tensile steel.
- Marking: According to standard, CE-marked
- Temperature range: -40° up to 200°C (no reduction of WLL)
- Standard: EN 1677-1
- Warning: RUD RM eye nuts are only to be used with bolts or threaded studs with a min. quality class 8.8 and who are 100 % crack detected. Non certified bolts or threaded studs are not allowed.
- Safety factor: 4:1
- Grade: 8
