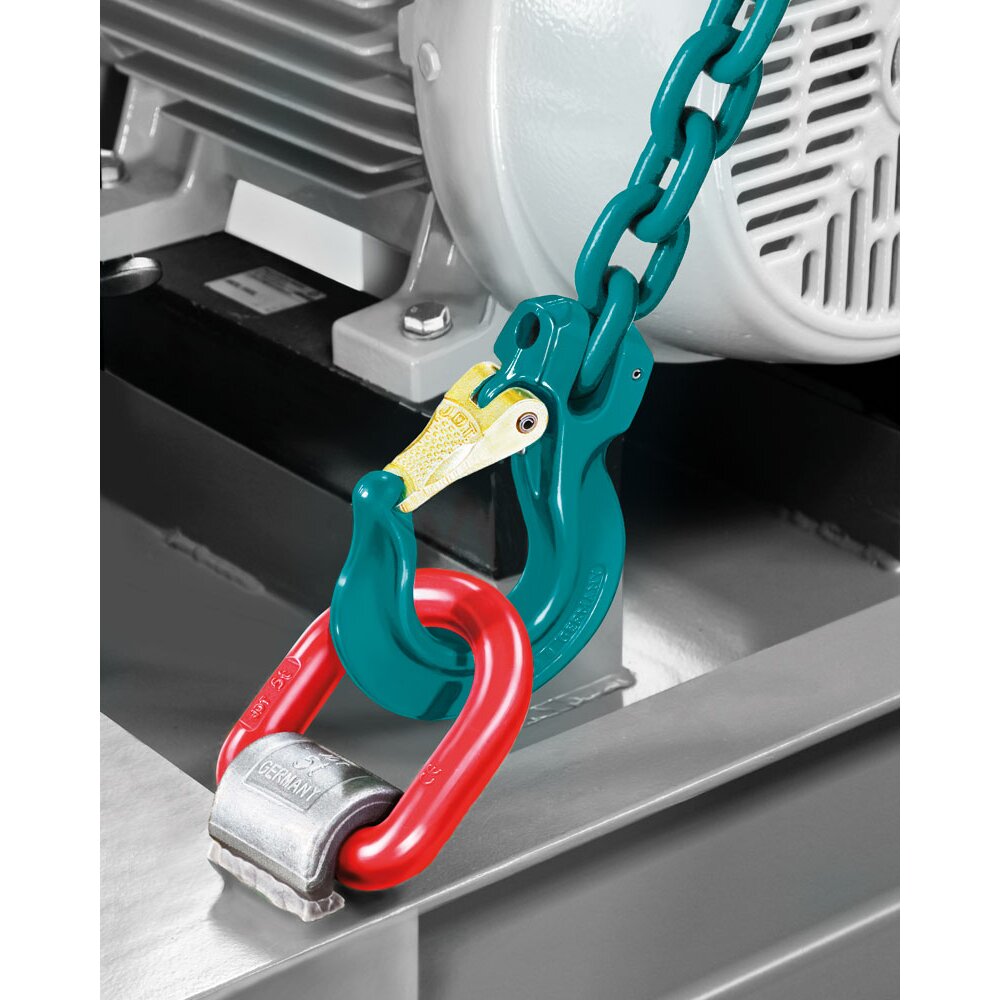

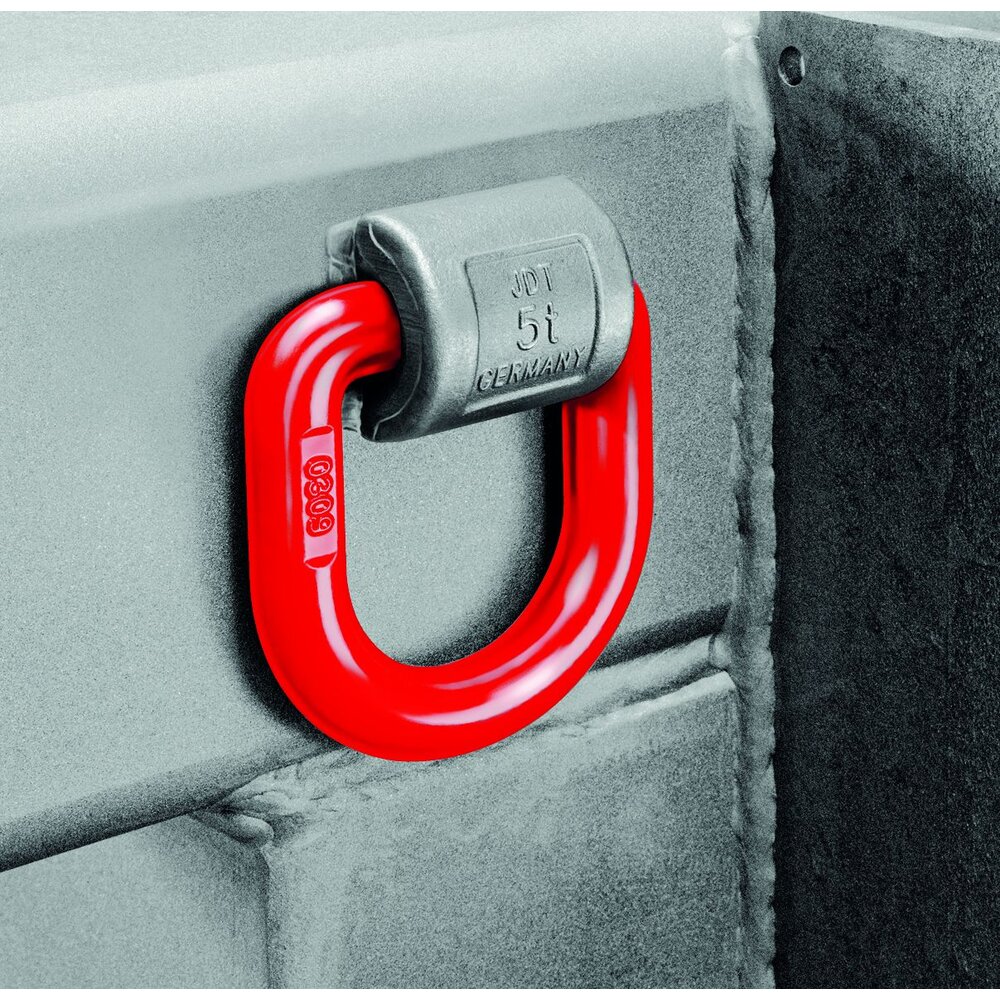

The TAPS weld-on attachment point is a permanently welded lifting point designed for industrial lifting and handling applications. It provides a compact attachment solution for steel structures, machinery, and fabricated components where a fixed lifting point with defined working load limits is required. The design allows loading both in the swivel direction and transversely, supporting more flexible sling positioning during lifting operations.
Best used for:
- Welded lifting points on fabricated steel structures and heavy equipment.
- Applications requiring compact geometry and 180° sling movement.
- Lifting arrangements exposed to varying load directions.
Product benefits:
- Weld-on construction creates a permanent lifting attachment.
- D-link swings 180° for improved sling alignment.
- Loadable transversely to the swivel direction.
- Manufactured from S355J2 steel in accordance with EN 10025.
- Sizes above TAPS 20 use 25CrMo4 material for higher load classes.
- RFID chip option supports identification and inspection traceability.
- Compact design helps reduce obstruction on fabricated assemblies.
- Available in WLL capacities from 1 t to 63 t.
- Features: 180º swing
- Material: Eye of alloy steel. Welding attatchment of steel St 52
- Marking: CE-marked, UKCA-marked, WLL
- Finish: Painted
- Note: The surface that the lifting eyes shall be attached to shall be flat and tolerate the load it is going to be exposed to
- Safety factor: 4:1
- Grade: 8
