Powertex
  • Cr6+ Free

POWERTEX PLH-S2OLP Lever Hoist is a hoist of high quality which is durable and easy to operate using the ergonomic ratchet lever. The OLP hoists are factory equipped with Overload Protection device, which limits the maximum operating force that can be applied using the ratchet handle.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Powder coated finish and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Lever hoist with overload protection that ensures that the hoist will not be overloaded.

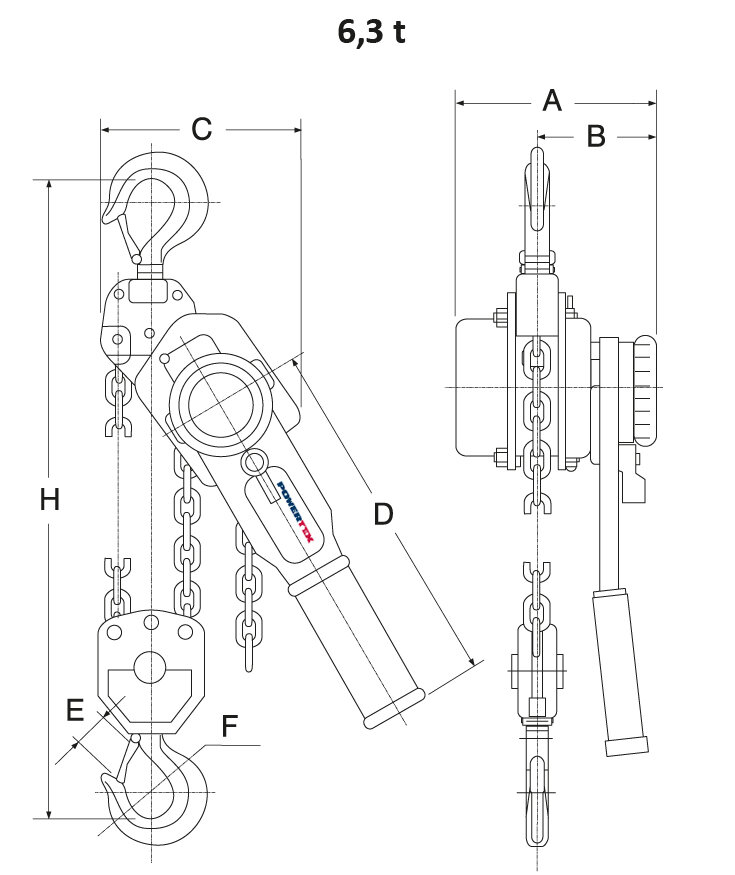

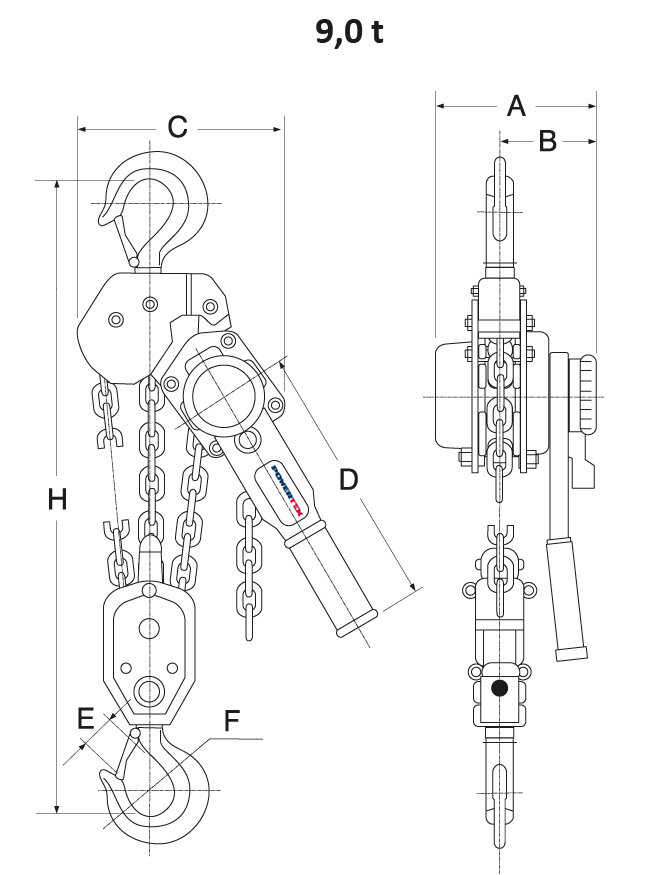

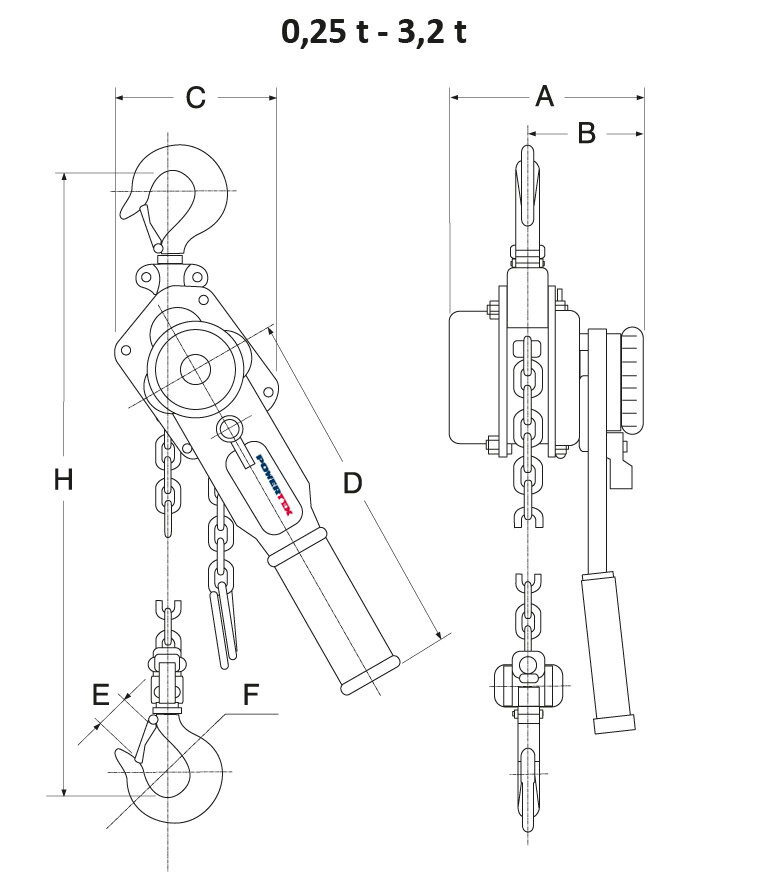

Lever hoist POWERTEX PLH-S2OLP 0.25 ton to 3 ton measurements Lever hoist POWERTEX PLH-S2OLP 6.3 ton measurements Lever hoist POWERTEX PLH-S2OLP 9 ton measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Model Load chain
mm
Number of falls Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H min
mm
Weight
kg
06.26CER2005OLL 0.5 3 PLH-S2OLP/500KG 5,0 x 15,0 1 24.8 150 90 118 253 22 32 310 6
06.26CER2008OLL 0.8 1.5 PLH-S2OLP/800KG 5,6 x 17,0 1 26.5 158 98 132 273 26 36 340 6.6
06.26CER2016OLL 1.6 1.5 PLH-S2OLP/1600KG 7,1 x 21,0 1 29.5 185 111 145 378 29 43 400 11

Other lifting heights on request
