Rud

Octagonal lifting eye approved for lifting.

  • Material: Forged of high strength steel.
  • Marking: According to standard, CE-marked, WLL, indication for the most unfavourable case
  • Temperature range: -40° up to 200°C
  • Standard: EN 1677-1
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

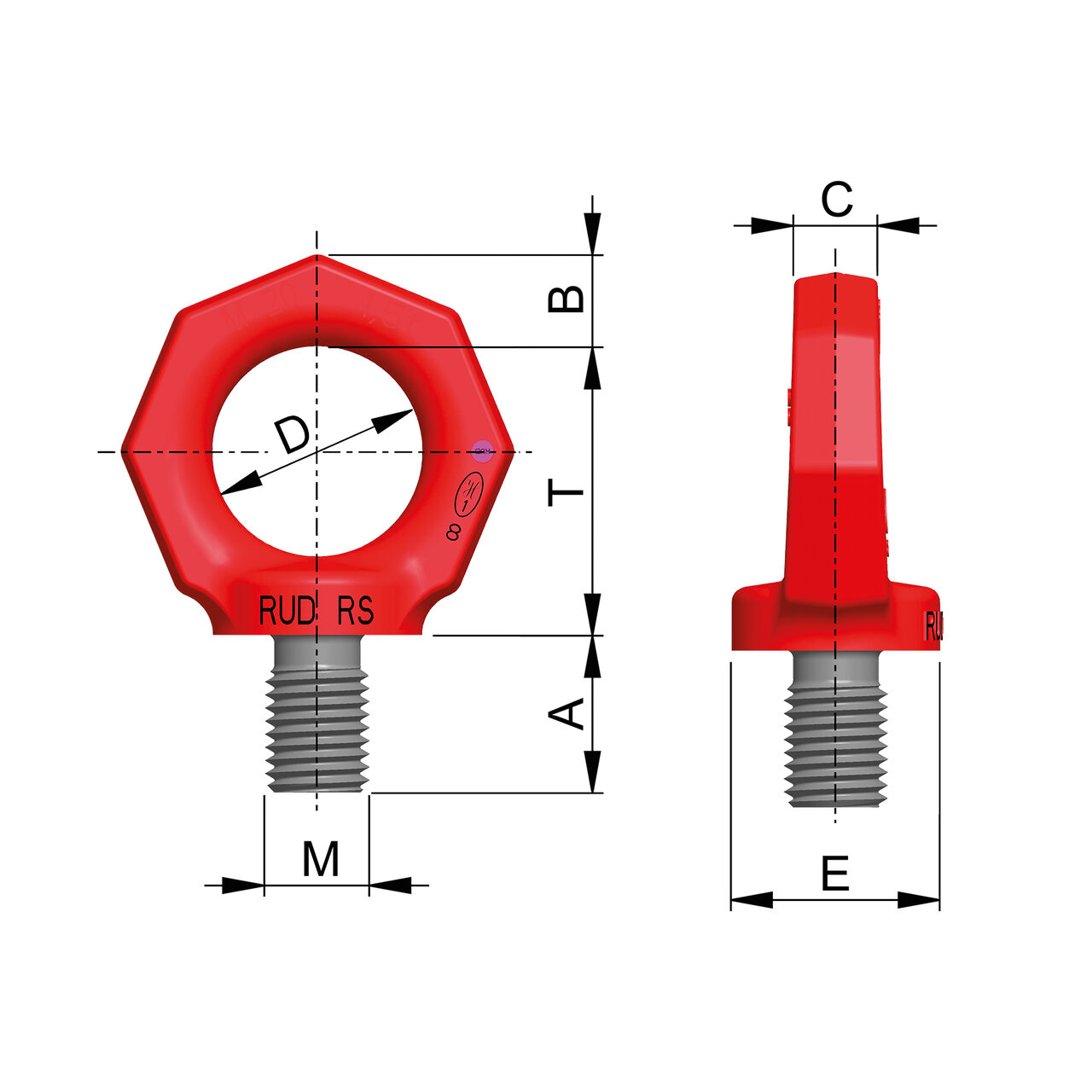

Part Code Code WLL
ton
Thread Eye diam.Ø
mm
Thread Length
mm
A
mm
B
mm
C
mm
D
mm
E
mm
T
mm
Weight
kg
06.RSM06 RS-M 0.1 M6 25 12 12 11 10 25 25 34 0.1
06.RSM08 RS-M 0.2 M8 25 12 12 11 10 25 25 34 0.1
06.RSM10 RS-M 0.25 M10 25 15 15 11 10 25 25 34 0.1
06.RSM12 RS-M 0.4 M12 30 18 18 13 12 30 30 41 0.18
06.RSM14 RS-M 0.75 M14 35 21 21 15 14 35 35 48 0.29
06.RSM16 RS-M 1 M16 35 24 24 15 14 35 35 48 0.3
06.RSM18 RS-M 1.2 M18 40 30 30 17 16 40 40 55 0.45
06.RSM20 RS-M 1.5 M20 40 36 30 17 16 40 40 55 0.47
06.RSM24 RS-M 2 M24 50 45 36 21 20 50 50 70 0.89
06.RSM30 RS-M 3 M30 60 54 45 26 24 60 60 85 1.62
06.RSM36 RS-M 4 M36 90 63 54 43 38 90 100 130 6.5
06.RSM42 RS-M 6 M42 90 68 63 43 38 90 100 130 6.5
06.RSM48 RS-M 8 M48 90 67 43 38 90 100 130 6.5
