Rud

Star shaped design, can be adjusted to the direction of pull. Higher load capacities than DIN 580-Eyebolts

  • Material: Forged high tensile engineering steel, crack detekted.
  • Marking: According to standard, WLL
  • Finish: Striking fluorescent pink powder coating
  • Standard: EN 1677-1
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

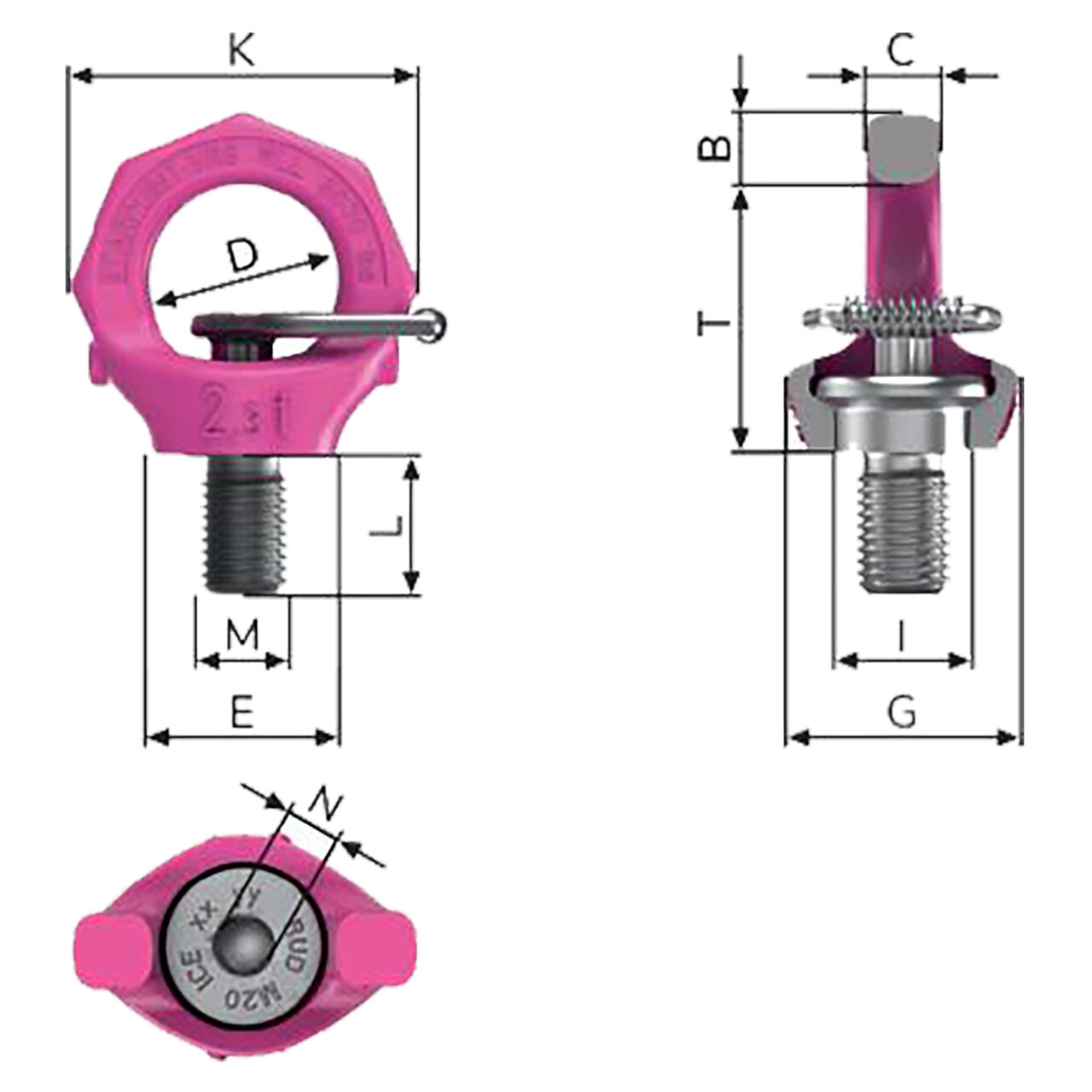

Part Code Code WLL
ton
Thread WLL straight lift
ton
Eye diam.Ø
mm
Thread Length
mm
B
mm
C
mm
D
mm
E
mm
G
mm
I
mm
K
mm
L
mm
N
mm
T
mm
Weight
kg
06.VRS-FM08 VRS-F 0.3 M8 1 25 12 11 9 25 25 30 16.3 47 12 6 35 0.12
06.VRS-FM10 VRS-F 0.4 M10 1 25 15 11 9 25 25 30 16.3 47 15 6 35 0.12
06.VRS-FM12 VRS-F 0.75 M12 2 30 18 13 10 30 30 34 19.8 56 18 8 42 0.21
06.VRS-FM16 VRS-F 1.5 M16 4 35 24 15 13 35 36 40 65 24 10 49 0.36
06.VRS-FM20 VRS-F 2.3 M20 6 40 30 17 16 40 41 50 76 30 12 58 0.6
06.VRS-FM24 VRS-F 3.2 M24 8 49 36 20 19 49 51 60 35 92 36 14 70 1.05
06.VRS-FM30 VRS-F 4.5 M30 12 60 45 26 24 60 66 75 44 114 45 17 87 2.08
06.VRS-FM36 VRS-F 7 M36 16 73 54 32 29 73 76 98 53 135 54 22 104 3.49
06.VRS-FM42 VRS-F 9 M42 24 84 63 37 33 84 86 111 62 158 63 24 121 5.4
06.VRS-FM48 VRS-F 12 M48 32 94 72 42 42 94 100 128 70 180 72 27 138 8.17
