Proof load: According to DnV 2.7-1

  • Material: Alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 5:1
  • Grade: 8
MLm_225mm
Select a row from the table below, then click the add to quote button

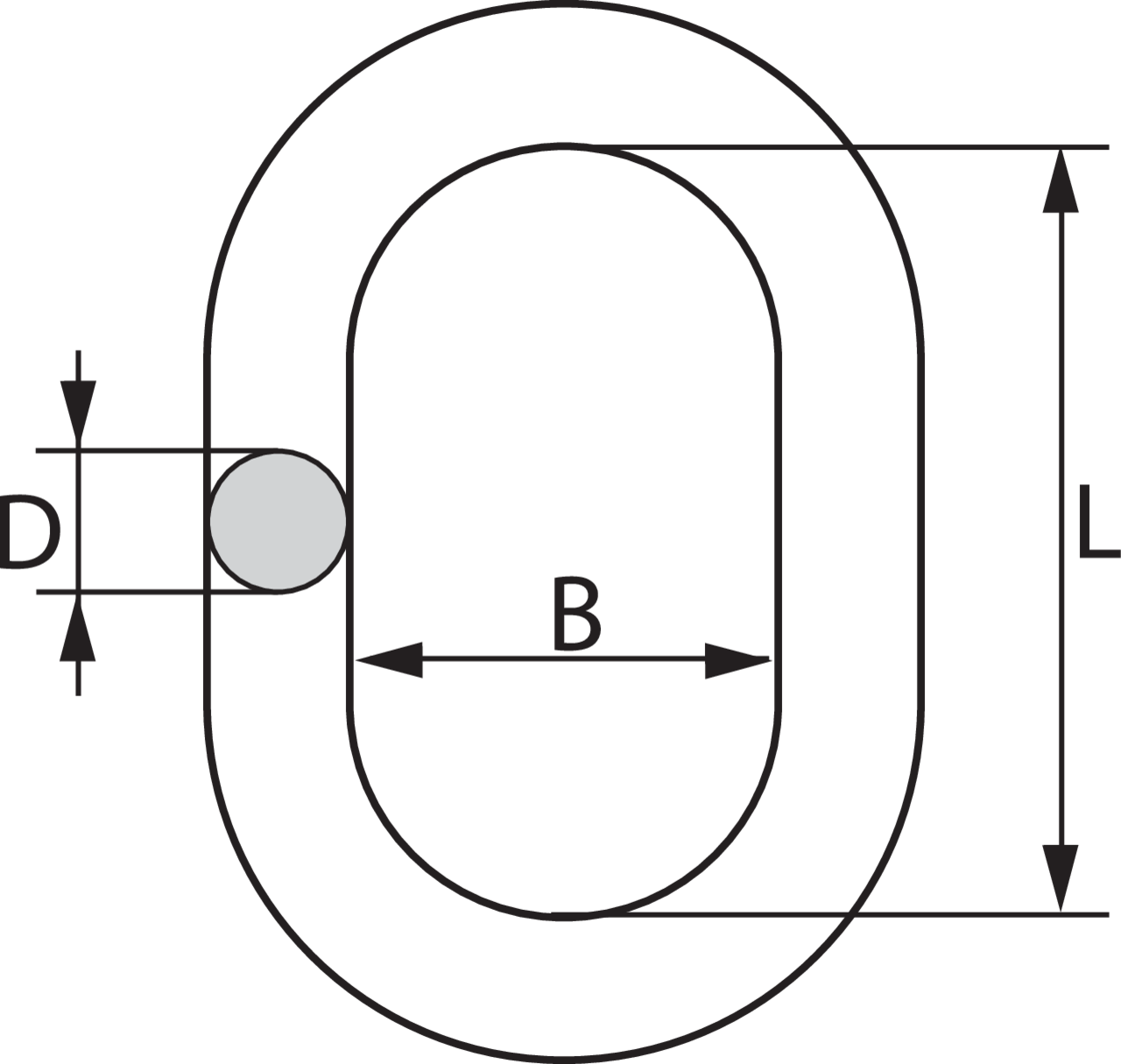

Part Code Code WLL
ton
B
mm
D
mm
L
mm
Weight
kg
07.01287OF 28.07.OF 11.8 140 28 270 4
07.0132OF 32.6.OF 17.1 140 32 270 5.3
07.0138OF 38.6.OF 28.1 140 38 270 7.5
07.0145OF 45.6.OF 38.3 170 45 320 12.5
07.0150OF 50.6.OF 45 200 50 380 18
07.0160OF 60.6.OF 65.3 220 60 430 30
