Chain for lifting and also allowed to use in lashing systems according to EN 12195-3.

  • Material: Alloy steel grade 8.
  • Marking: According to standard
  • Finish: Painted.
  • Standard: EN 818-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1 (WLL) 2:1 when used in Lashing systems
  • Grade: 8
Chain - Short Link Grade 8

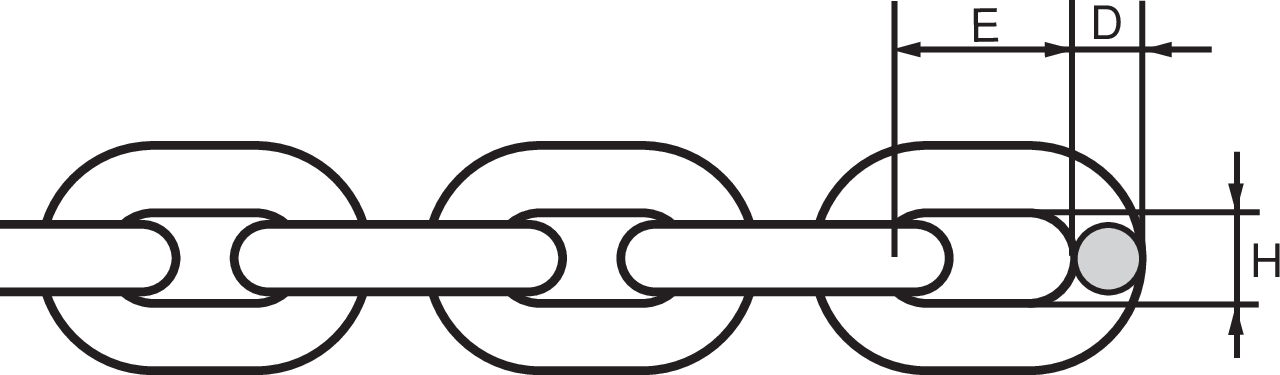

KLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
LC
kN
Min. breaking force
kN
E
mm
H
mm
Weight
kg/m
CAD
På forespørsel 6 1.12 22 45.2 18 8.5 0.8
03.10KL07.8.00 7 1.5 30 61.6 21 10.5 1.1
03.10KL08.8.00 8 2 40 80.4 24 8 1.4
03.10KL10.8.00 10 3.15 63 126 30 14 2.2
03.10KL13.8.00 13 5.3 100 212 39 19 3.8
03.10KL16.8.00 16 8 160 322 48 23 5.7
03.10KL20.8.00 20 12.5 250 503 60 26 9
03.10KL22.8.00 22 15 300 608 66 28,6 11
På forespørsel 26 21.2 849 78 33,8 15
På forespørsel 32 31.5 1,290 96 41,6 23
WLL ton = Lifting applications for safety factor 4:1
LC kN = Load lashing capacity (LC).
