Home / Products / Chains and components / Grade 10 / Hooks Grade 100

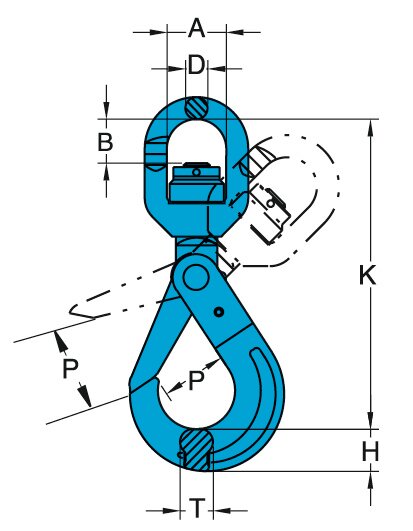

Swivel Self Locking Hook X-027N

View PDF
  • At least 25% greater WLL than traditional Grade 8 products.
  • Rotate when loaded.
  • Proof load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Magnaflux crack detection is performed 100% on each batch.
  • Bui

Show more

Show all variants

Log in to webshop
Part code:
  • At least 25% greater WLL than traditional Grade 8 products.
  • Rotate when loaded.
  • Proof load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Magnaflux crack detection is performed 100% on each batch.
  • Built with ball bearing and enables full swivel feature under load.
  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard
  • Temperature range: Tempering temperature minimum 400°C .
  • Finish: Blue painted.
  • Standard: EN 1677-3
  • Safety factor: 4:1
  • Grade: 10
