Rud

Design: Octagonal lifting eye.

  • Material: Forged of high strength steel.
  • Marking: CE-marked, WLL, indication for the most unfavourable case.
  • Finish: Striking fluorescent pink powder coating.
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Thread WLL straight lift
ton
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
K
mm
L
mm
N
mm
T
mm
Weight
kg

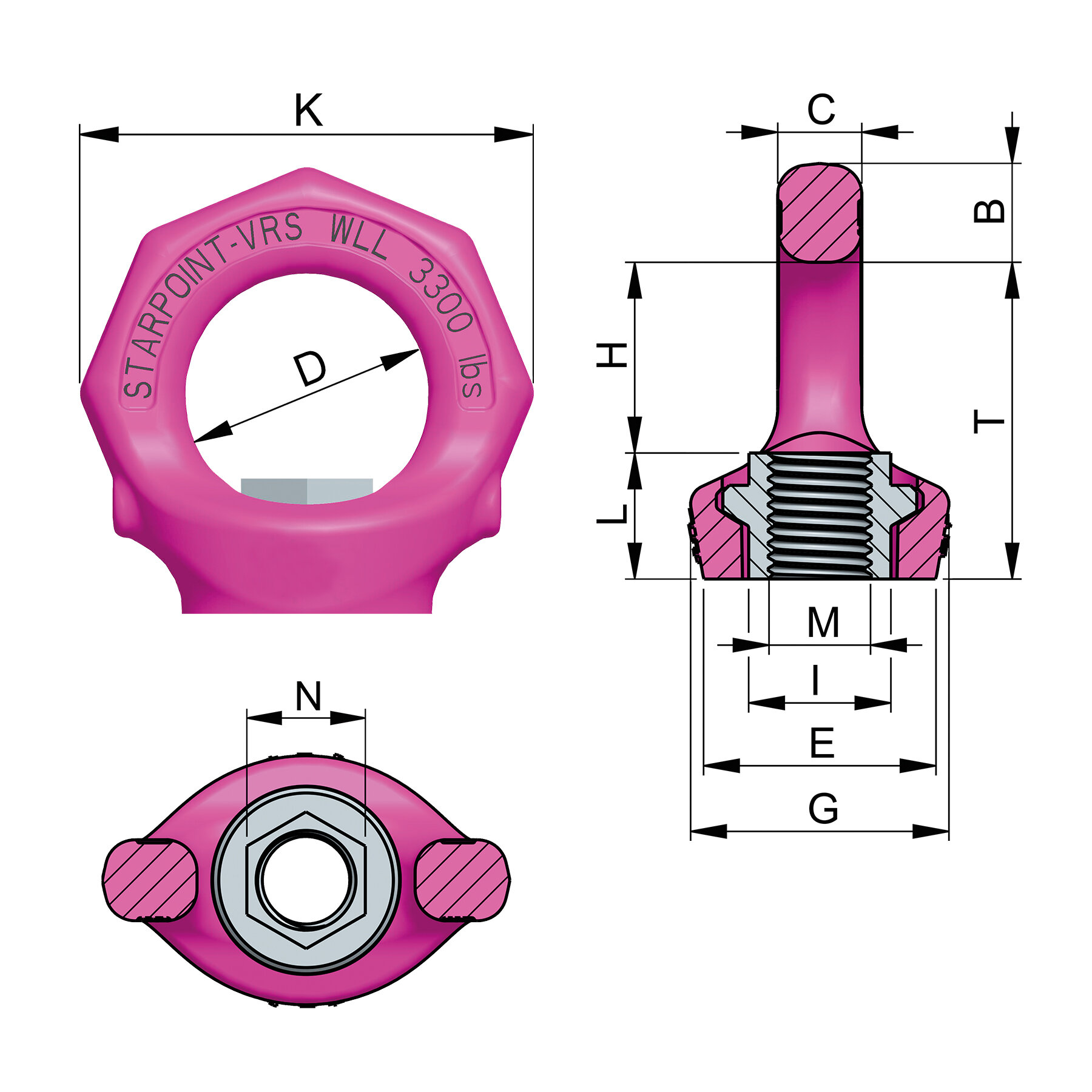

CAD
06.VRM-M08 VRM 25 0.3 M8 1 11 9 25 25 21 30 21 16.3 47 14 12 35 0.1
06.VRM-M10 VRM 25 0.4 M10 1 11 9 25 25 21 30 21 16.3 47 14 12 35 0.1
06.VRM-M12 VRM 30 0.75 M12 2 13 10 30 30 24 34 25 19.8 56 17 14 42 0.18
06.VRM-M16 VRM 35 1.5 M16 4 15 13 35 36 30 40 29 23.6 65 21 19 49 0.32
06.VRM-M20 VRM 40 2.3 M20 6 17 16 40 41 37 50 35 29.3 76 23 24 58 0.48
06.VRM-M24 VRM 48 3.2 M24 8 20 19 49 51 45 60 41 35.2 92 29 30 70 0.83
06.VRM-M30 VRM 60 4.5 M30 12 26 24 60 66 56 75 51 44 114 36 36 87 1.32
