  • Not for lifting

Fork terminals are amongst the most commonly used wire end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: Polished.
Stainless fork terminal pic

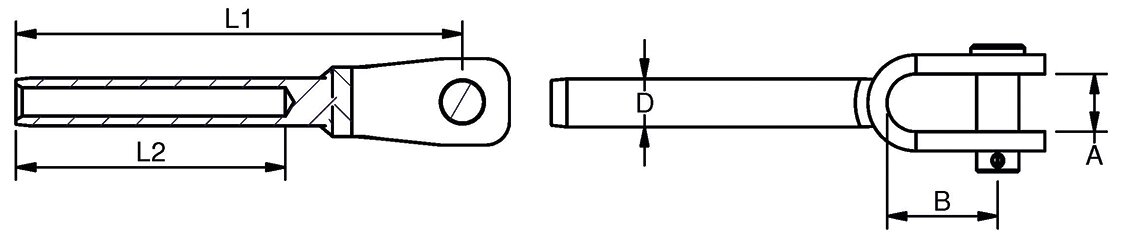

Stainless fork terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Pin diameter
mm
MBL
ton
A
mm
B
mm
D
mm
L1
mm
L2
mm
Weight
kg/100pc
05.71003 3 5 0.8 7,5 12 6,4 67 38 2.3
05.71004 4 6 0.8 7,5 12 7,5 71 45 2.7
05.71005 5 6 1.5 9,5 13 9,0 83 51 4.1
05.71006 6 8 3.2 11 15 12,6 99 64 10
05.71007 7 12 6.5 14 25 14,2 119 70 18.1
05.71008 8 12 6.5 14 25 16,0 136 83 21.6
05.71010 10 14 9.4 18 32 17,8 151 89 35
Note: Difference in the outer diameter (D) for steel wire rope 12 mm.
