• Not for lifting

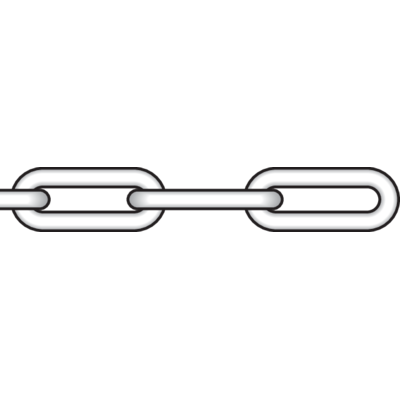

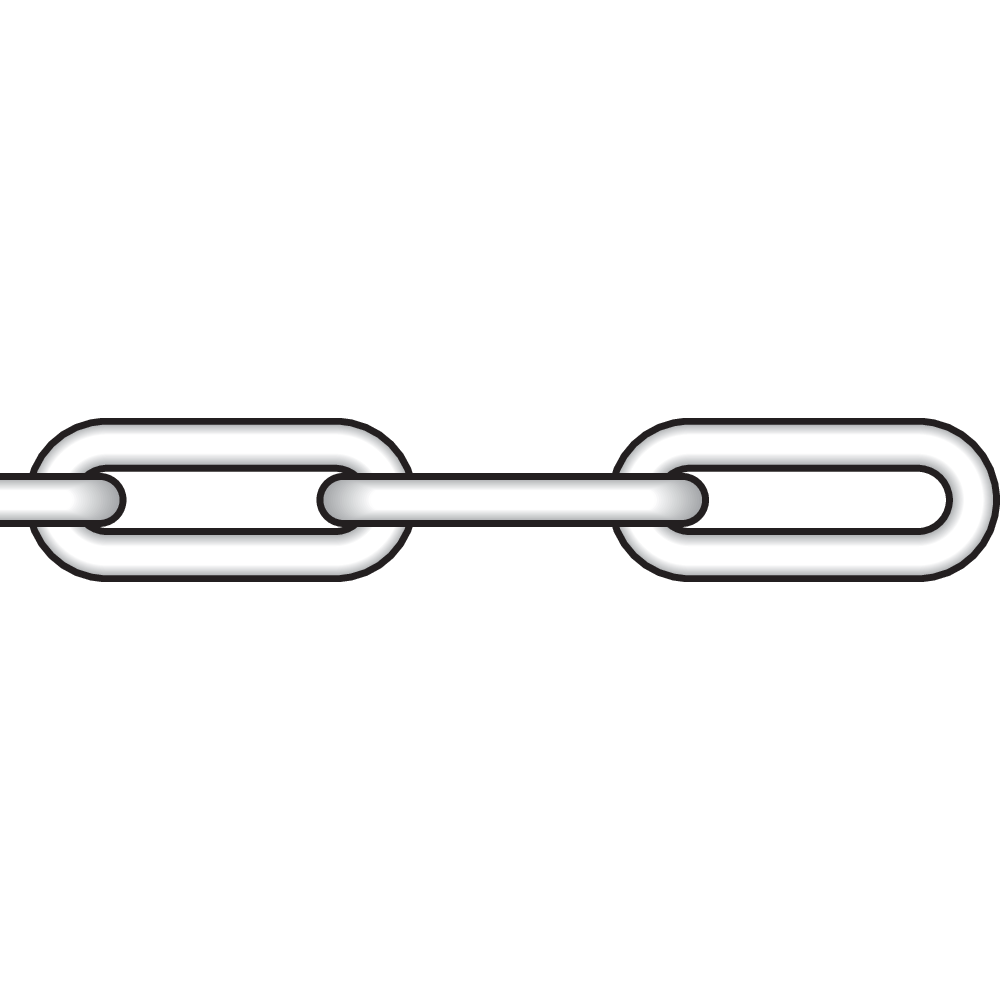

Chain for different applications.

  • Marking: According to standard
  • Finish: 3-4,5 mm zink-platined, 5- mm hot-dip galvanized.
  • Standard: DIN 763
  • Warning: Not for lifting.
  • Grade: 2
Hlx_225mm
HLM_e_225mm HLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Length
m
E
mm
H
mm
Weight
kg/m
11.7912104000 3 50 26 5,2 0.15
11.7912106100 3 150 26 5.2 0.32
11.7912104100 4 50 29 6 0.27
11.7912107000 4 90 29 6 0.32
11.7912104200 5 50 34 7,5 0.43
11.7912107100 5 45 34 7.5 0.5
11.7912104300 6 50 38 9 0.63
11.7912107200 6 50 38 9 0.8
11.7912105000 8 50 47 12 1.1
11.7912107300 8 23 47 12 1.8
11.7912105100 10 50 62 16,5 1.8
11.7912107400 10 15 62 16.5 2.7
11.7912105200 13 50 82 26 3
11.7912105300 16 50 100 64 4.45
Other dimensions on request.
