Bracket winch KWV: Bracket winch, galvanised, open construction, sturdy design.
Bracket winch KWE: Bracket winch, stainless steel, open construction, sturdy design.

  • Open construction.
  • High rope capacity.
  • Corrosion resistant.

Optional:

  • Zinc-plated: type KWV.
  • Stainless steel (304): type KWE.
  • Detachable crank, rope pay-off function, crank radius adjustable.
  • Marking: According to standard
  • Standard: EN 13155
  • Note: Excl. wire (to be ordered separately).
Bracket Winch KWE 250
Bracket Winch KWV 650
Bracket Winch KWV 1250

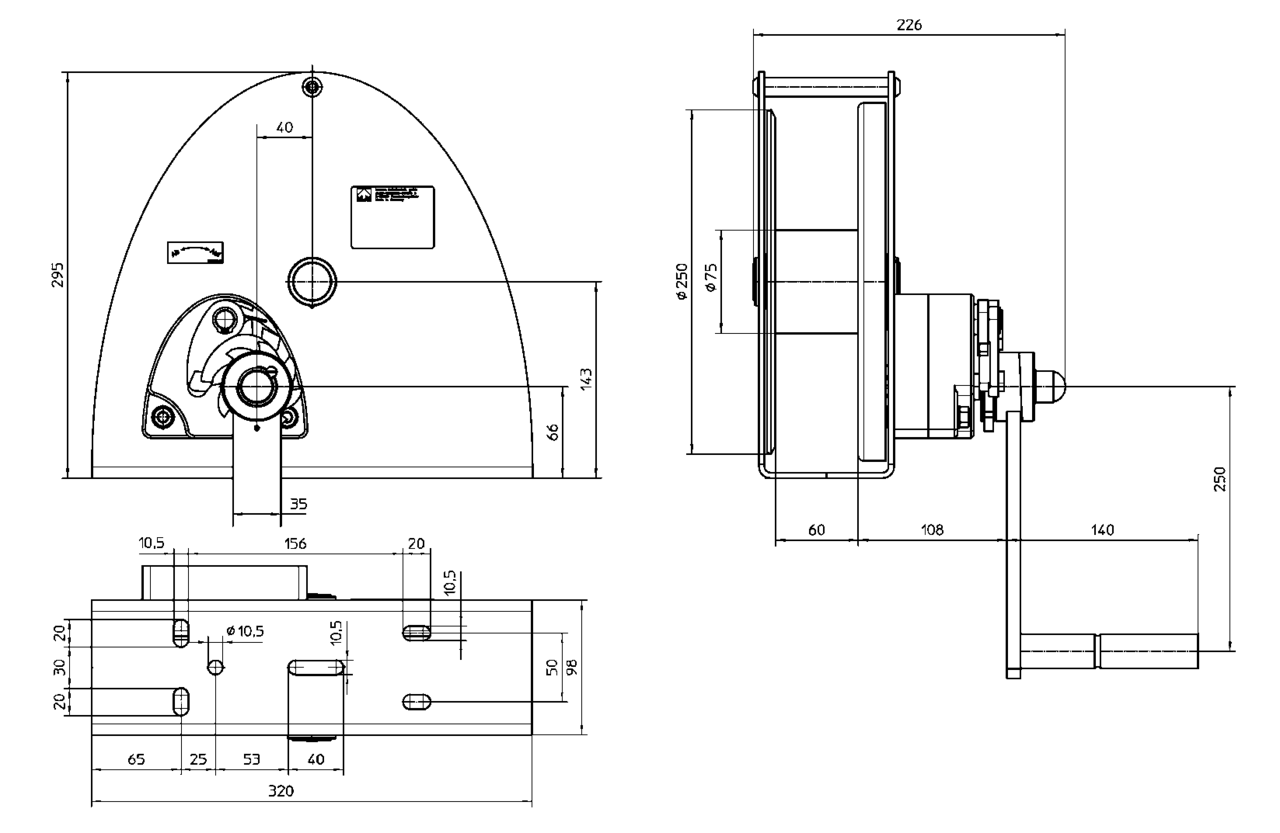

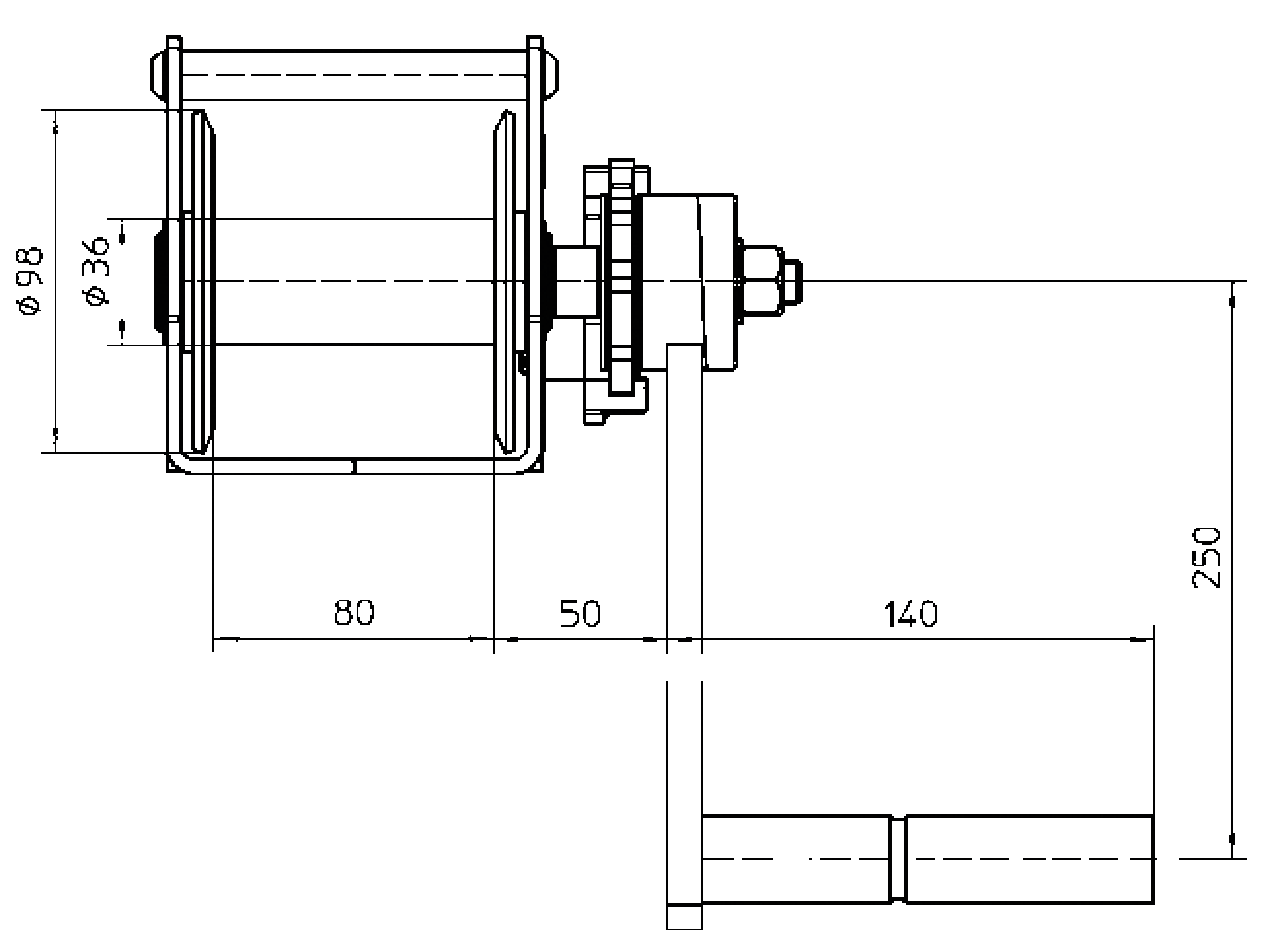

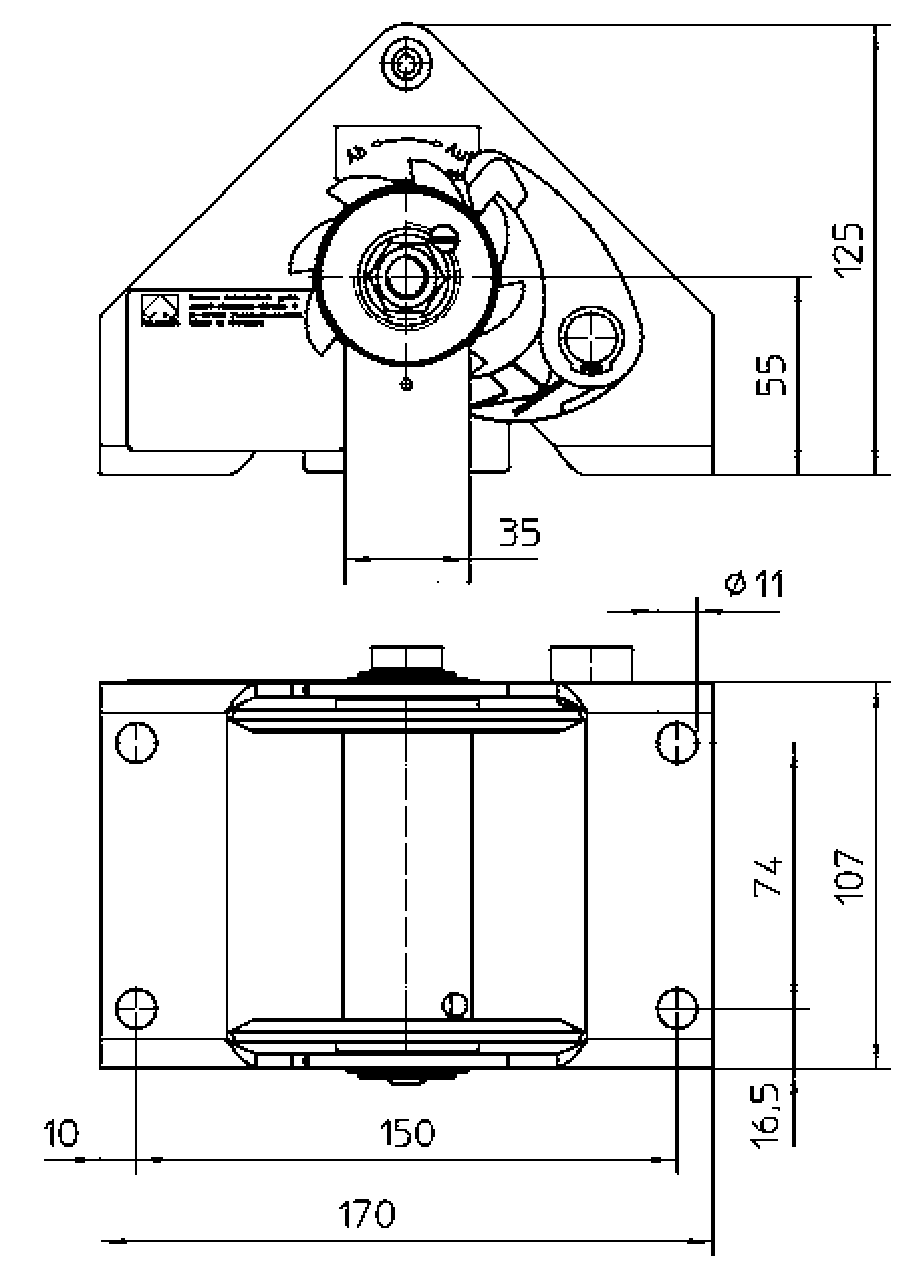

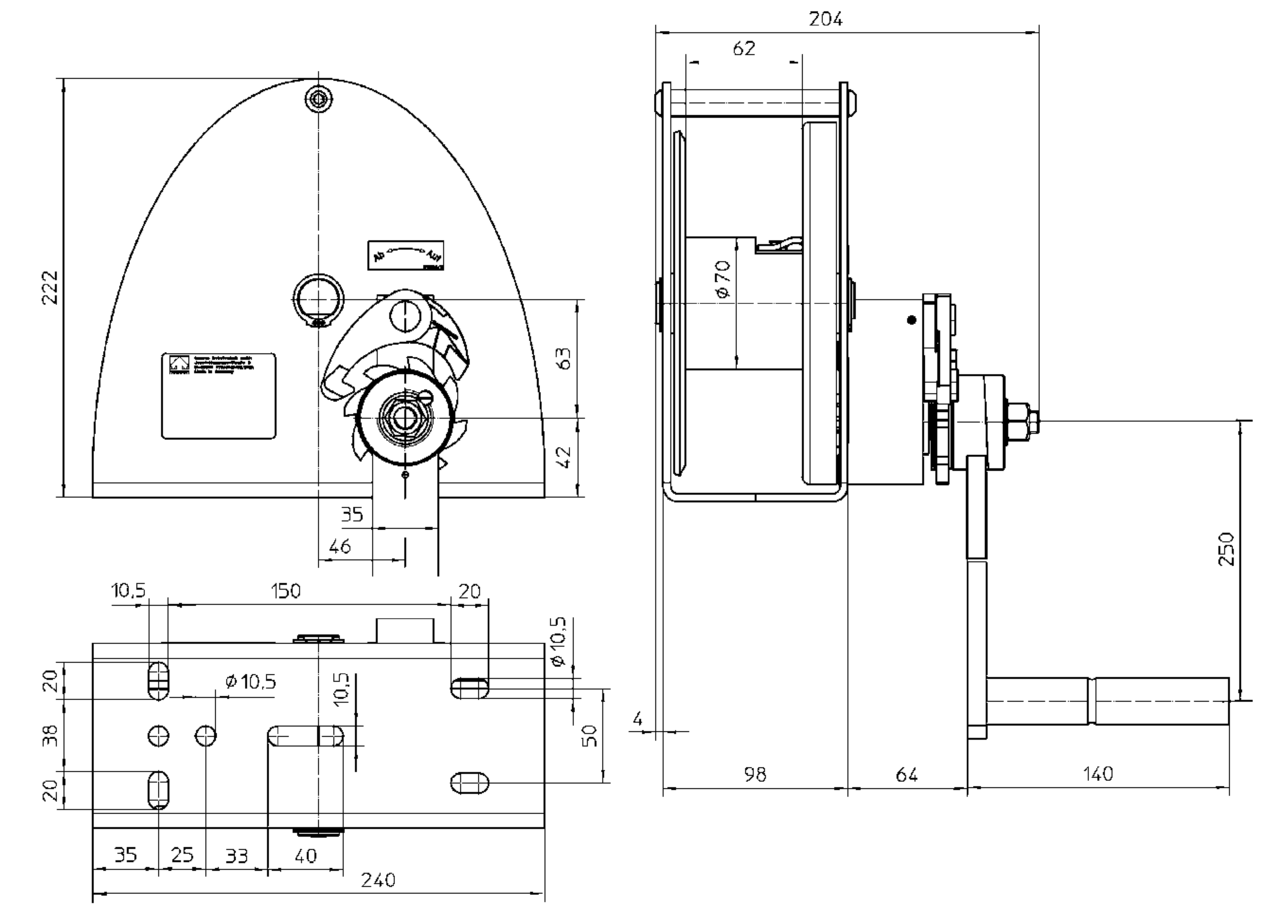

Bracket Winch KWV/KWE measurements Bracket Winch KWV-KWE 250 measurements Bracket winch KWV-KWE 650 measurements Bracket Winch KWV-KWE 1250 measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL Final rope pos.
kg
Crank force
N
Lift/crank turn
mm
Weight without wire rope
kg
WLL Lifting 1st layer
kg
Rope capacity
m
Wire rope Ø
mm
16.27230269 KWV 300 0.3 150 270 126 4 300 22 4
16.27230271 KWE 650 0.65 340 240 39 9.3 650 16 7

*Recommended wire rope diameter. Safety factor 3:1
1st layer = inner layer
