The IPU10 vertical lifting clamp is used for lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. The hinged hoisting eye ( a.k.a. universal eye ) allows for the clamp to place and lift the load from any direction, or with a multiple leg sling without side-loading the clamp.  Available in a variety of models:

  • IPU10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
  • IPU10J - Larger jaw opening.
  • IPU10S - For use with Stainless Steel material.
  • IPU10H - For use with materials with a surface hardness to 472HV10 (450 HB).

Features:

  • Available in capacities of 0.5 thru 30 metric tons
  • Higher Working Load Limits are available upon request.
  • Wide variety of jaw openings available: 0 to 155 mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • User manual and test certificate included with each clamp.
  • Full 180° turning range for material transfer, turning or moving.
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
  • For use with materials with surface hardness to 279HV10, only 5% min WLL is needed.
  • Maintenance and repair kits are available.
  • All sizes are RFID EQUIPPED.
  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: A minimum load of 10% of the WLL is required. Except for WLL 500 KG which requires a minimum load of 5% of WLL.
IPU10

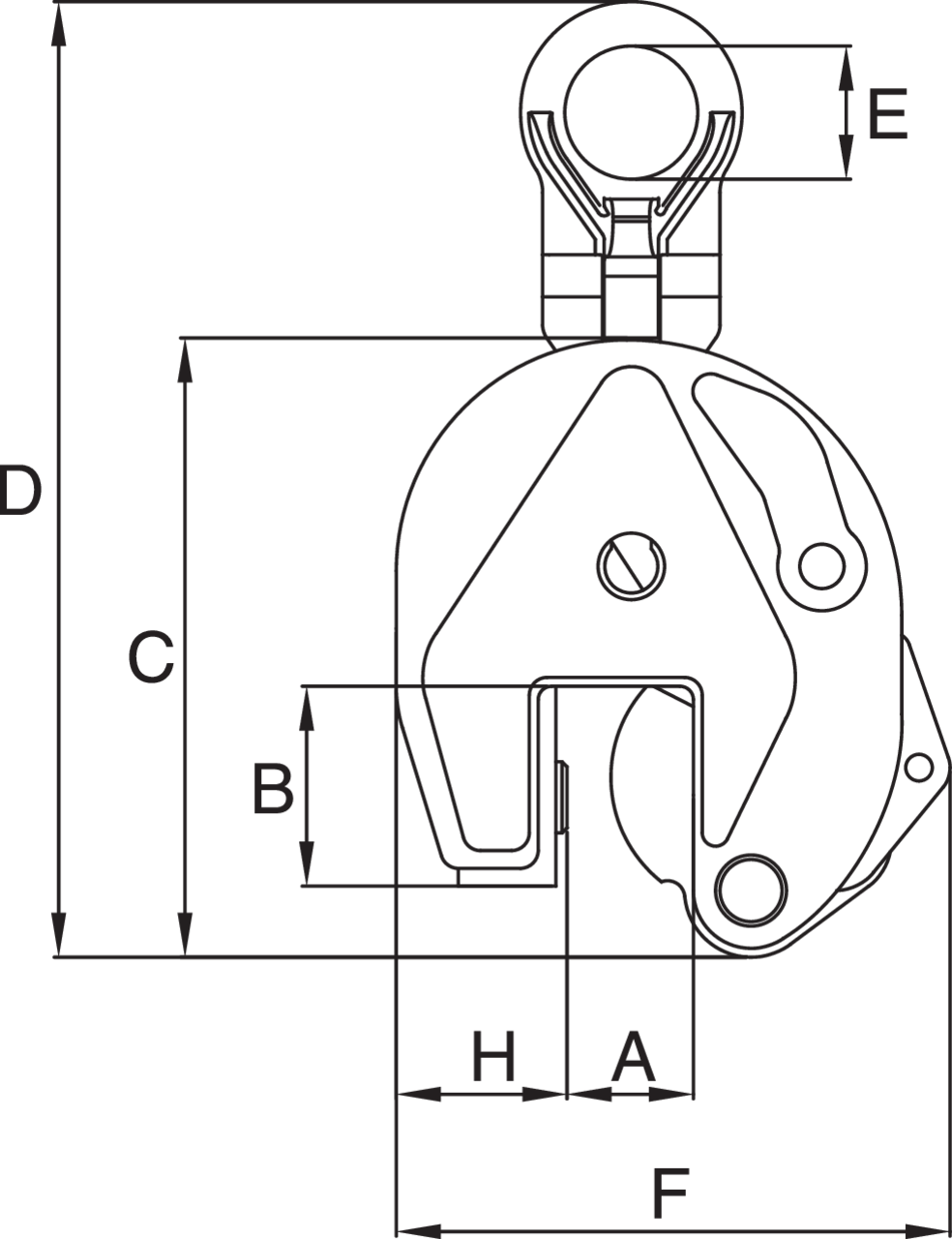

IPU10_fig5 IPU10_fig4
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Jaw width
mm
I P Model. B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
Weight
kg
06.15005IPU10 0.5 0-16 0.5-IPU10 44 130 216 40 115 42 28 - 11 1.9
06.15010IPU10 1 0-20 1-IPU10 45 139 225 40 127 42 38 - 11 2.4
06.15020IPU10 2 0-35 2-IPU10 78 201 368 70 188 64 55 - 16 8.5
06.15030IPU10 3 0-40 3-IPU10 100 253 436 75 222 78 60 - 20 14.8
06.15045IPU10 4.5 0-40 4.5-IP10 16
06.15060IPU10 6 0-50 6-IPU10 126 302 525 80 292 84 95 44 20 24
