Rud

Octagonal lifting eye approved for lifting.

  • Material: Forged of high strength steel.
  • Marking: According to standard, CE-marked, WLL, indication for the most unfavourable case
  • Temperature range: -40° up to 200°C
  • Standard: EN 1677-1
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

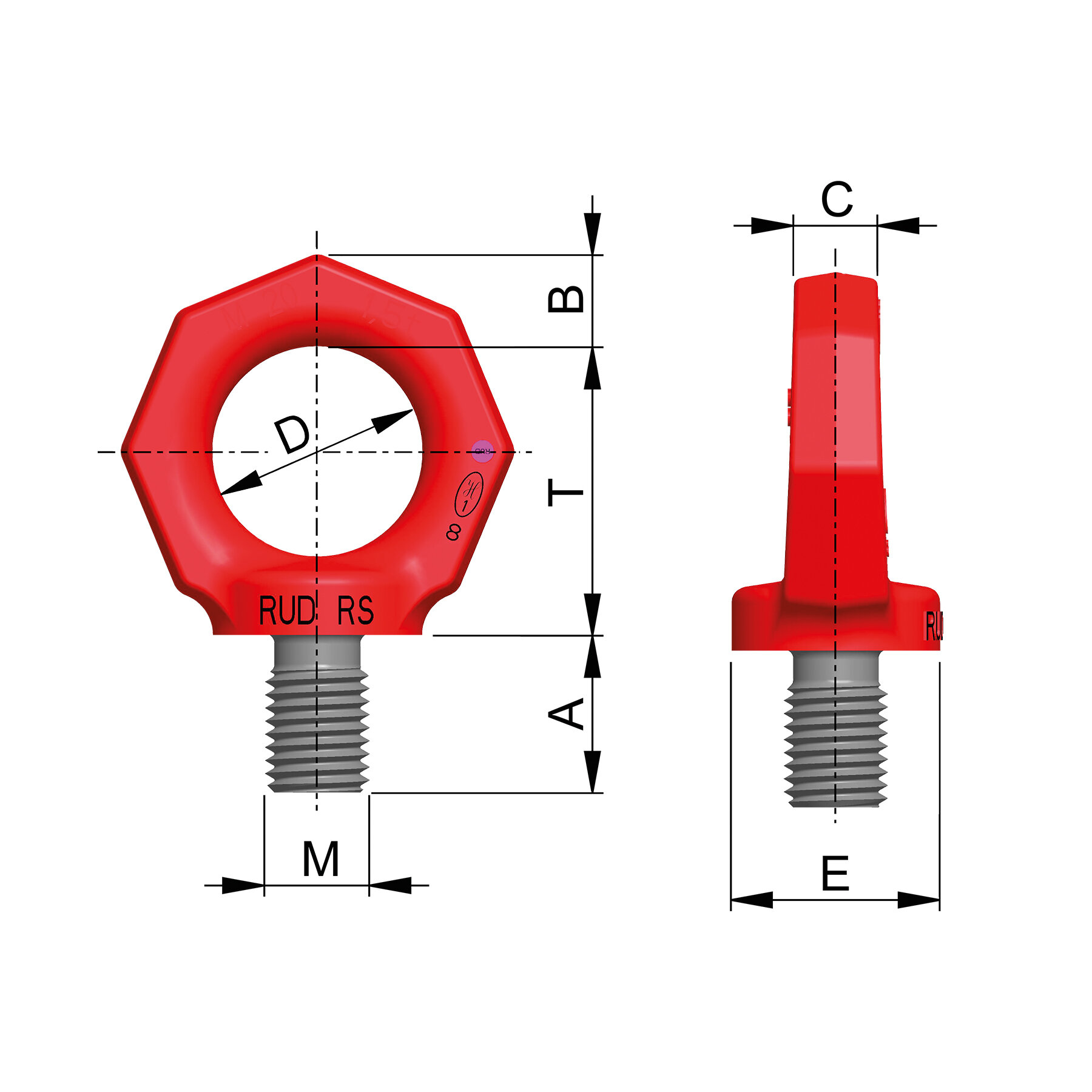

Part Code Code WLL
ton
Thread Eye diam.Ø
mm
Thread Length
mm
A
mm
B
mm
C
mm
D
mm
E
mm
T
mm
Weight
kg
CAD
06.RSM06 RS-M 0.1 M6 25 12 12 11 10 25 25 34 0.1
06.RSM08 RS-M 0.2 M8 25 12 12 11 10 25 25 34 0.1
06.RSM10 RS-M 0.25 M10 25 15 15 11 10 25 25 34 0.1
06.RSM12 RS-M 0.4 M12 30 18 18 13 12 30 30 41 0.18
06.RSM14 RS-M 0.75 M14 35 21 21 15 14 35 35 48 0.29
06.RSM16 RS-M 1 M16 35 24 24 15 14 35 35 48 0.3
06.RSM18 RS-M 1.2 M18 40 30 30 17 16 40 40 55 0.45
06.RSM20 RS-M 1.5 M20 40 36 30 17 16 40 40 55 0.47
06.RSM24 RS-M 2 M24 50 45 36 21 20 50 50 70 0.89
06.RSM30 RS-M 3 M30 60 54 45 26 24 60 60 85 1.62
06.RSM36 RS-M 4 M36 90 63 54 43 38 90 100 130 6.5
06.RSM42 RS-M 6 M42 90 68 63 43 38 90 100 130 6.5
06.RSM48 RS-M 8 M48 90 67 43 38 90 100 130 6.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
