• Not for lifting

Chain for different applications.

  • Marking: According to standard
  • Finish: Zink-platined.
  • Standard: DIN 766
  • Warning: Not for lifting.
  • Grade: 2
KL_White_225mm
KLM_e_225mm KLM_e_225mm
Select a row from the table below, then click the add to quote button

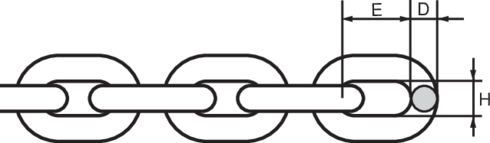

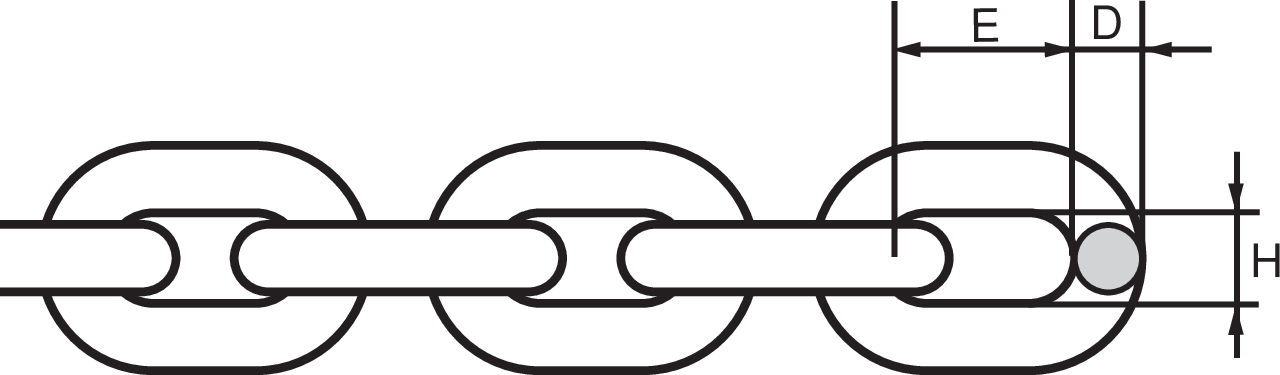

Part Code Code Diameter
mm
Length
m
E
mm
H
mm
Weight
kg/m
11.7912093400 Bobbin 4 100 19 5.5 0.3
11.7912091900 4 50 19 5,5 0.3
11.7912092000 5 50 22 7,5 0.5
11.7912093500 Bobbin 5 60 22 7.5 0.5
11.7912092100 6 50 24 9 0.9
11.7912093600 Bobbin 6 37 24 9 0.9
11.7912092200 8 50 25,5 10,5 1.4
11.7912093700 Bobbin 8 23 25.5 10.5 1.4
11.7912092300 10 50 32 13,5 2.1
11.7912093800 Bobbin 10 15 32 13.5 2.1
11.7912092500 13 50 39 18 3.7
11.7912092600 16 50 45 22 5.9
11.7912092700 19 50 57 27 8
