Double Swivel Ring Codipro OS DSR UP UNC

Standard metric and UNC threads available
M 5 to M 42 UNC 1/4" to UNC 1" 1/4

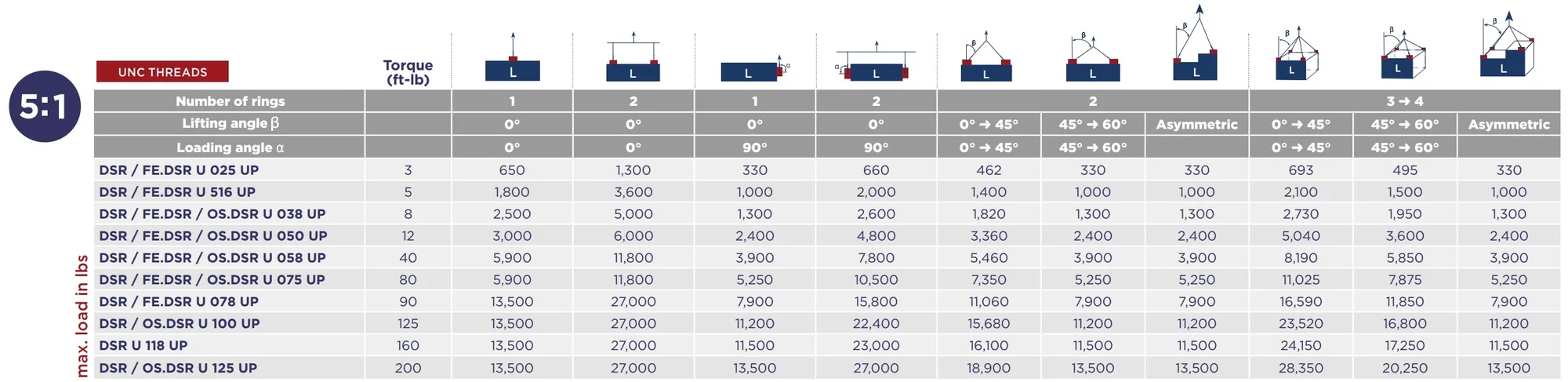

WLL 0.07 ton to 9.00 ton WLL 330 lbs to 13,500 lbs

  • Swing under load 360° rotation - 180° swing.
  • Complies with Machinery Directive 2006/42/CE.
  • Produced in accordance with the EN 1677-1 standard.
  • Safety factor 4:1 and 5:1.
  • Marking: CE-marked, Individual marking
  • Safety factor: 5:1

Filters

Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
