• Not for lifting
  • Material: Stainless AISI 316.
  • Warning: Not for lifting.
2402-r_e_225mm

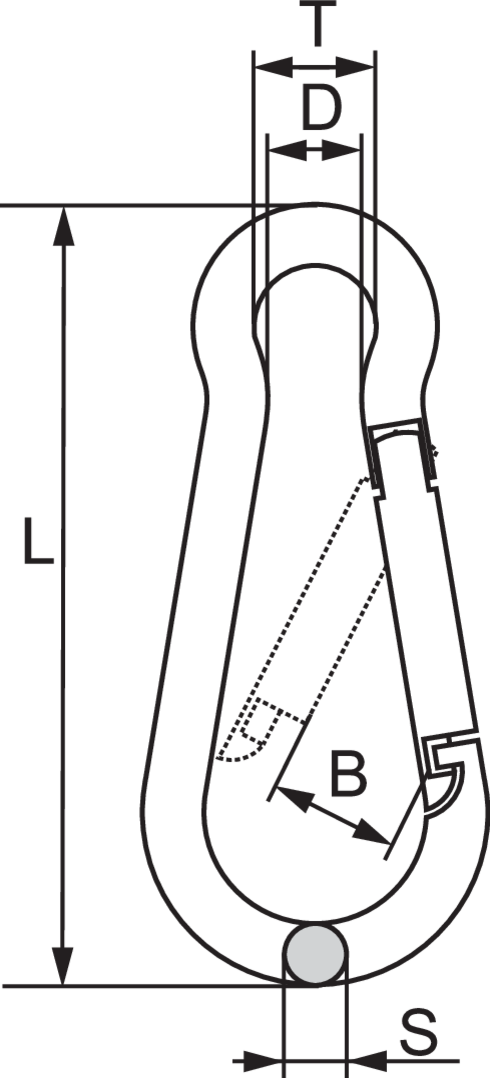

2401m_micke_225mm
Select a row from the table below, then click the add to quote button
Part Code MBL
ton
Dimensions
mm
L
mm
S
mm
B
mm
Weight
kg/100pc
11.5612026000 0.57 50x5 50 5 8 2
11.5612026100 0.67 60x6 60 6 9 2.9
11.5612026200 0.75 70x7 70 7 9 4.3
11.5612026300 0.87 80x8 80 8 9 6.5
11.5612026400 1.15 90x9 90 9 9 8.9
11.5612026500 1.25 100x10 100 10 12 12.9
11.5612026600 1.28 120x11 120 11 16 16.8
11.5612026610 1.31 140x12 140 12 19 24
