• Not for lifting

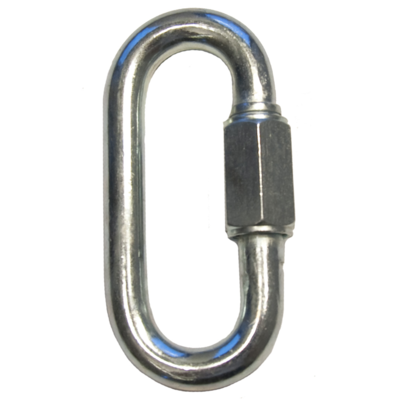

General: For use to connect or lengthen grade 2 stainless chain.

  • Finish: Stainless, AISI 316.
  • Warning: Not for lifting.
Rz_e_225mm
Rzm_e_225mm Rzm_e_225mm
Select a row from the table below, then click the add to quote button

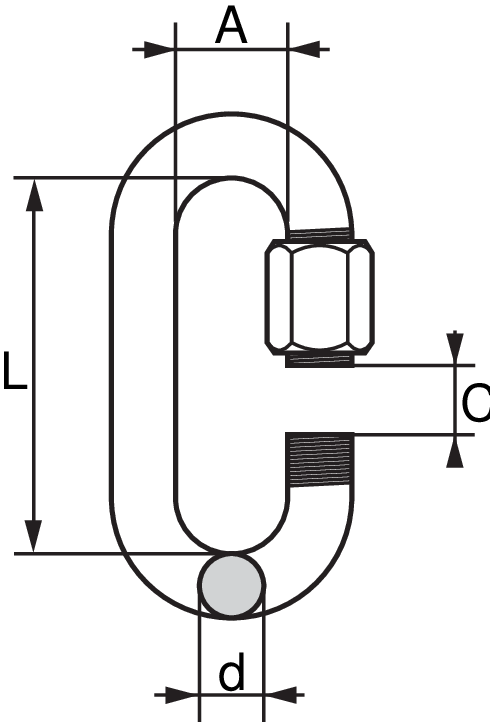

Part Code Diameter
mm
A
mm
C
mm
L
mm
D
mm
Weight
kg/100pc
11.5612010900 4 11 5 31 4 1.4
11.5612011000 5 13 6 38 5 2.2
11.5612011100 6 14 7 45 6 3.6
11.5612011300 8 18 10 60 8 7.8
11.5612011500 10 20 12 69 10 14
11.5612011502 12 25 15 83 12 20
